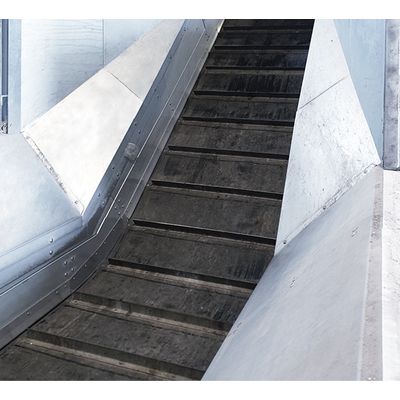

REDWAVE - Model KGF -Chain Belt Conveyor

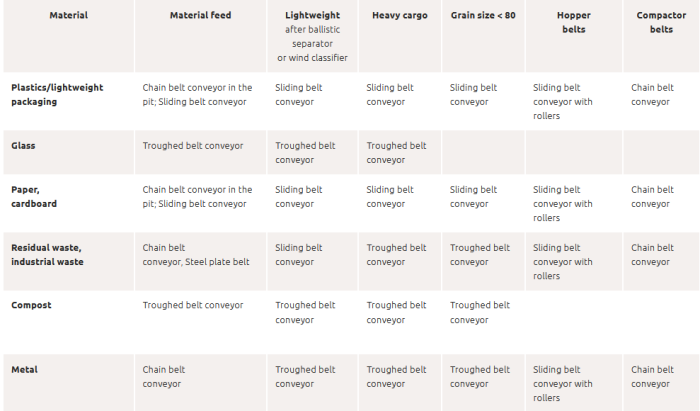

REDWAVE chain belt conveyors (KGF) are normally used for the transport of a wide variety of materials to feed into a waste treatment plant or to a baler. Since material is usually loaded by wheel loaders, the chain belt conveyors are embedded in the hall floor for feeding material at ground level. It is also frequently used as a discharge belt automatically fed by bunker conveyor belts in sorting plants. The robust chain belt conveyors are characterised by high reliability and a long service life. The conveyor belt frame is made of steel profiles with screwed-in cross profiles. In combination with the rest of the sheet steel structure, this creates a very stable and torsion-resistant overall construction.
The cladding panels are screwed to the belt frame, which enables quick and uncomplicated maintenance service. Because the chain conveyor is manufactured in a modular construction, it can be extended or shortened without much effort. A solid pin conveyor chain of type FV112 is used as the conveyor chain. Lubrication is carried out as standard by automatic drip oilers, which switch off automatically when the chain belt conveyor stops.
- Type: KGF
- Framework: Galvanised sheet metal
- Centre distance: Of choice
- Belt speed: Up to approx. 0.32 m/s; selection as required
- Power unit / gear: Slip-on gear motor; power on demand
- Lateral guide: Sheet steel
- Sidebar height: 400 mm
- Drip lubricator: Electrical version
- Belt guidance: Solid pin conveyor chain FV112 with split sprockets; Ø roller 55 mm; slide rails for rollers can be changed; lateral slide guide made of PE500 screwed to the link plates of the conveyor chain
- Cleats angle steel: 60 x 60 mm
- Distance between cleats/cross beams: 500 mm
- Contact protection / bottom belt cover: Sheet metal construction 1.5 mm, screwed according to machinery directive
- Type of belt: Of choice, e.g. EP 400/3, 4+2 mm top layer
- Buckled conveyor, bend down/bend up
- Gooseneck design
- Speed monitor
- Emergency stop rip cord
- Type of belt e.g. EP 500/4, 5+2 mm
- Further belt widths on request
- Partially reversible (jog mode)
- Sidebar extension 200, 400 mm; cleats 80mm high
- Cleats/cross beam distance 250 mm - 750 mm on request
- Transfer chute and funnel with required maintenance openings
- Spillage chute; electrically operated scraper brush
- Pit edge profiles; pit cover
- Z-100 including reinforcement for installation in concrete
