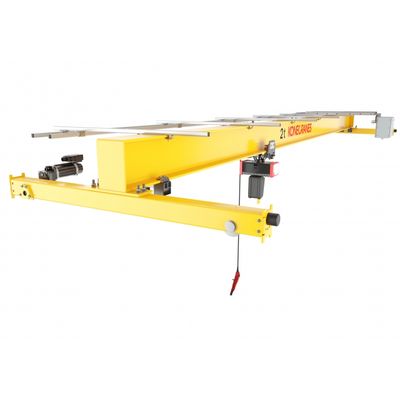

Model C-Series -Chain Hoist Cranes
Modern, durable, lightweight lifting. Introduce state-of-the-art lifting to your facility. Konecranes C-series electric chain hoist cranes are modern, durable, and dependable lifting machines, built with an outstanding chain hoist from a proven industry front-runner. What makes C-series cranes stand out? The C-series electric chain hoist is highly ergonomic and offers a compact solution to lifting objects safely. High quality, reliable components and outstanding performance make it ideal for different industrial applications. C-series cranes are particularly suitable for manufacturing and assembly lines, where versatility, high quality, and dependable operations are essential. Across process industries and applications, they can also play a key role as maintenance cranes.
Konecranes C-series chain hoist cranes offer a wide range of options for your production needs.
- Enhanced performance with high-quality core of lifting components, such as precision gears and motors
- Self-adjusting brakes requiring little maintenance
- Simple hoist suspension bracket design for easy installation
- Reliable overload protection with slipping clutch
- Durable limit switches for added safety
- Ergonomic pendant and handy, lightweight hook
- Superior girder design
FEATURES: SPECIFICATIONS
Load Range: 250 kg – 5000 kg
HOL (meters): Hoists with 1 chain fall, 16 m Hoists with 2 chain falls, 10 m
Hoisting speeds (m/min): 4/1, 8/2, 12/3, 16/4
Ambient temperature range:: -10 – +40C
Environment: Indoor use
Hoists on the crane: 1 hoist on crane
Crane type: Top running single girder and under running cranes
Crane structure: Profile and box girders (with sliding connection as an option)
Crane controls: Stepless travelling movements
Hoist controls: 2-speed or stepless hoisting movements
Hoist power supply: Festoon and energy chain
Max span: Profile girder 19 meters and box girder 22 meters
Voltages: 380 – 415V/ 50Hz | 440V – 480V/ 60Hz | Control voltage 48V and 115V
Crane controller type: Movable pendant, connected to festoon Optional radio controller
Konecranes C-series cranes are known for combining usability, enhanced performance, and optimal lifetime value.
- Equipped with the latest technology in electric chain hoists
- Quiet and smooth operation for ultimate operator comfort
- Smartly built with the toughness, precision, and reliability of components designed for over a million operations
- Fast and simple installation, with easy access to all wearing components
- Comprehensive, systematic, and world-class product maintenance
- Recognized for high quality and trusted global customer service
