GSI - Chain Loop and UBC Powersweep

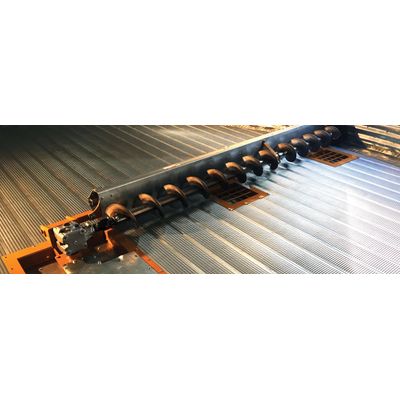

A Direct Gear Drive sweep for use with Chain Loop and Under-Bin Conveyor systems. This sweep utilizes many of the same great features and components of GSI`s Direct Gear Drive Powersweep. In Chain Loop applications this sweep is available with a 9" sweep auger and 8", 10" and 12" unloads. Sized for 24`-72` diameter bins, with capacities up to approximately 4,500 BPH. When used with an Under-Bin Conveyor the DGD sweep is available with a 10" auger in 24`-72` diameter bins.
- Capacities: Up to 4,500 BPH
- Chain Loop Sweep Auger Diameter: 9"
- UBC Sweep Auger Diameter: 10"
- Fits Bin Diameters: 24` - 72`
GEAR DRIVE
The Chain Loop Powersweep is powered independently of the chain loop system via a 90 degree chain driven gear drive.
DURA-EDGE FLIGHTING
All direct gear drive sweeps are equipped with heavy-duty 7-gauge Dura-Edge® Flighting that lasts 30% longer than regular flighting. An improved wear option is also available.
WHEEL
Proven drive wheel design provides aggressive sweep action, advancing the sweep into the grain in even the most challenging conditions.
