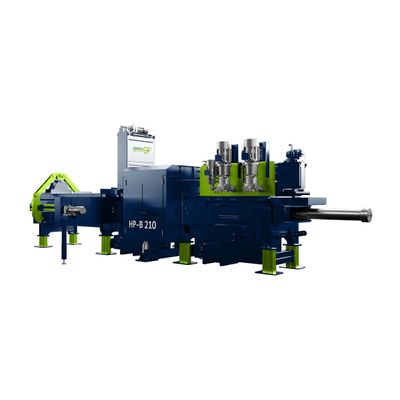

Europress - Model HP-B 210 -Channel Balers with Wire Tying
With various additional features that allow adaptation to specific challenges, our channel balers with wire tying in the HP series prove to be particularly versatile and versatile in use. As required, each baler can be equipped with, among other things, a fast-lift cylinder for energy savings or protected against wear and tear by full Hardox equipment. Remote control operation also facilitates work, with maximum security provided by the key transfer system fitted as standard. Our HP models are individually equipped to master demanding tasks in waste compaction in line with customer requirements.es it particularly interesting for agricultural applications, e.g. hay and straw.
- Tying:
- 5-Fold horizontal
- 5-Fold vertical
- 5-Fold vertical + 4-fold horizontal
- Press force: 210 Tons
- Filling opening: 1.000 x 2.000
- Channel Cross-Section: 1.100 x 1.100
- Drive power: 45 - 3 x 75 kW
- Bale weight: 1.100 - 1.900
- Bale length: up to 2,0 m
- Length: 15.500 mm
- Width: 2.580 mm
- Height: 3.900 mm
- Total Weight : 61 Tons
Weight capacity depending on bulk density [theoretical] in tons per hour
- 20 - 30 kg/m³: 7 - 32
- 35 - 50 kg/m³: 12 - 53
- 60 kg/m³: 14 - 64
- 100 kg/m³: 24 - 107
For closing the press plate during the pressing process so that no material enters the lance guide slots. Hydraulically driven closure plate mounted on the press plate.
This closes the needle slots during the press stroke. These needle slots are only opened during the tying process.
As a result, we guarantee a wire-crack-free workflow and reduced cleaning and maintenance intervals.
For closing the bottom during the pressing process so that no material gets into the lance guide slots. Hydraulically driven closure plate installed under the bottom wear plates.
This closes the needle slots in the press floor during the press stroke. These needle slots are only opened during the tying process.
As a result, we guarantee a wire-crack-free workflow and low cleaning and maintenance intervals.
Perforator for perforating and squeezing PET bottles, retractable from the side or rear.
The perforator is equipped with two drums that rotate in reverse direction shortly after each other and are equipped with over 1000 spikes
The spikes are aligned so that the bottles are not trapped between them.
WEP whirler retractable from the rear on a console with a drive power of 22 kW.
This allows smooth surfaces, for example of catalogs, to be broken, so that better compaction is possible.
10 mm thick inner lining of the entire bale chamber made of wear-resistant steel in bolted design.
Special equipment for artificial mineral fibresEquipment package to equip the duct baler ready for approval for the compression of artificial mineral fibers.
For closing the press plate during the pressing process so that no material enters the lance guide slots. Hydraulically driven closure plate mounted on the press plate.
This closes the needle slots during the press stroke. These needle slots are only opened during the tying process.
As a result, we guarantee a wire-crack-free workflow and reduced cleaning and maintenance intervals.
With its technically advanced but easy-to-operate additional functions, the HP series is excellently equipped for applications under difficult conditions or with specific targets that require, for example, variable tying, a strong reduction in wear, or an analysis system for higher safety. Through individual consultation, we always find the right solutions for our customers that fully meet the requirements in waste compaction. As an alternative to the HP series, we provide our customers with the slim standard variant.
- Pressing force between 150 and 210 tons
- Stable construction of the base frame
- Height adjustability of the press ram
- Piston bottom Slider
- Cardanic suspension of the main cylinder
