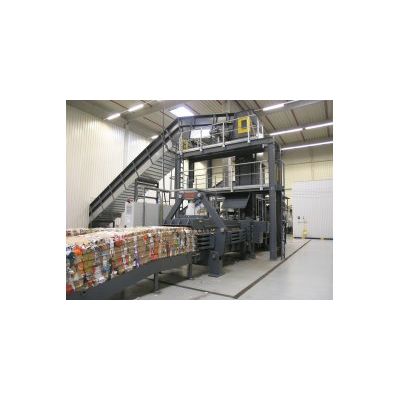

HSM - Model VK 8818 - 90+45 kW -Channel Baling Presses / Channel Balers
FromHSM GmbH Co. KG
HSM does not just offer hardware alone, but provides individual system solutions as well. When it comes to demanding systems, you can benefit from our extensive know-how and broad experience. Experienced HSM specialists assist you right from the start on site and provide ongoing support and service. With the wide range of options and accessories, our disposal solution can be fully integrated into your existing operation and processes. The individualised design makes the entire system efficient.
Most popular related searches
channel baling press
channel baling
baling press
channel baler
plastic bottle
bale strapping
roller bearing
safety system
packaging recycling
hydraulic cylinder
Continuous loading
- For continuous loading with conveyor belt.
Gimballed press cylinder system
- Tension free mounted press cylinder
- Reduced wear on the pressing cylinder and press ram guides
- Longer service life of the hydraulic cylinder and other components
Solid press carriage guidance with easy maintenance access
- Optimal self cleaning of the roller track
- Individually arranged, movable rail cleaners
- Very strong roller bearings
- Direct lubrication
Locking cylinder
- Increases operational safety during wirestrapping e.g. if there is a power cut
- Prevents the press ram being pushed back during bale strapping at emergency-stop or loss of power
- Prevents bending of the wire insertion cylinder
Wear-resistant steel
- Use of wear-resistant steel for highly stressed areas
- Double-walled design of pressing chamber andpressing channel ensures easy maintenance and replacement*
- Wear-resistant steel twisting fingers for a very long service life
Frequency controlled drive
- Energy savings of up to 40 % compared to the standard drive with unchanged performance
- Process optimisation
- Energy-saving motor and machine drive
- Available as option
Door safety lock system
- Key-operated inspection door safety lock system (Castle-lock) for highest level of operator safety
High bale quality
- Software, optimally adjusted for the different materials, guarantees high bale quality even when material is frequently changed
- Optimised bale dimensions and bale weights for efficient truck loading
- Possible to switch-off wire strapping manually
- Article Number: 000000000006429003
- Pressing power: 880 kN
- Volume throughput at 20 kg/m³: 12.86 t
- Volume throughput at 50 kg/m³: 32.14 t
- Volume throughput in idle oper: 643 m³/h
- Loading aperture width: 970 mm
- Loading aperture length: 1800 mm
- Bale length: 600-1200 mm
- Bale width: 1100 mm
- Bale height (up to): 750 mm
- Bale weight, depending on material (up to): 500-700 kg
- Cycle time when idling vacío: 8.3 s
- Voltage: 400 V
- Frequency: 50 Hz
- Width x Height x Length: 3870 x 3700 x 11900 mm
- Weight: 33000 kg
- Number of strappings: 5
- Strapping material: Wire
- Industry type: Print and Packaging, Recycling & Disposal, Logistics and Distribution, Retail, Industry and Manufacturing
- Press material: HDPE / LDPE hollow containers & plastic bottles, Plastic film, Punch waste/residue, Big Bags, Mixed paper, Cardboard
