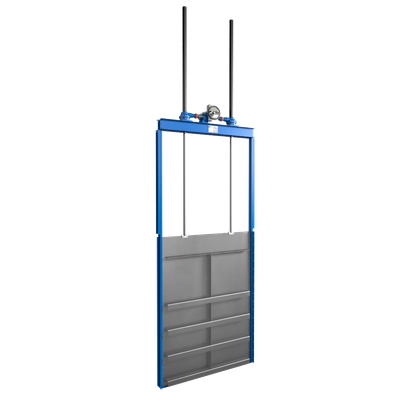

CMO Valves - Channel Penstock for Industrial Applications
FromCMO Valves
CMO Valves offers the Channel Penstock, designed for use in industrial applications such as dams, hydrological projects, and energy generation. The penstock, available in sizes ranging from 150x150 to 3000x3000, accommodates clean or solid-laden liquids. A square or rectangular design allows for flexibility to suit various requirements, and options for unidirectional or bidirectional flow are available. Seal materials can be customized depending on the application. The penstocks are typically embedded in channel walls and feature a 3-side seal design, ensuring overflow safety by directing fluid above the conduit when necessary. CMO Valves ensures compliance with applicable European directives, committing to quality standards. Detailed technical documents, including the product sheet, catalogue, and maintenance manual, are available for further specifications. For specific sizing inquiries and pressures, CMO Valves provides direct consultation to meet precise project needs.Most popular related searches
Penstock for clean liquids or loaded with solids.
Design of square or rectangular penstock.
Possibility of unidirectional or bidirectional.
Various seal materials available.
Common design to embed in the walls of the channel.
Utilization
- This channel penstock is designed to work in open channels, and has a 3‐side seal (base and sides).
- It is suitable to work with clean liquids or loaded with solids.
Sizes
From 150 x 150 up to 3000 x 3000
*Larger sizes on request.
Check with CMO Valves for the general dimensions of a specific penstock.
Working pressures
The maximum working pressure is the height of the through conduit of the penstock; since these penstocks have a 3‐side seal, the fluid would overflow above the through conduit whenever the fluid were higher than the through conduit.
