Chatron Lorentz - Model PS -Centrifugal Solar Submersible Pump Systems

The LORENTZ PS range of DC powered centrifugal pumps have been designed specifically to pump larger volumes of water efficiently using solar power. These highly efficient pumps can achieve flow rates of 79m3 /hour.

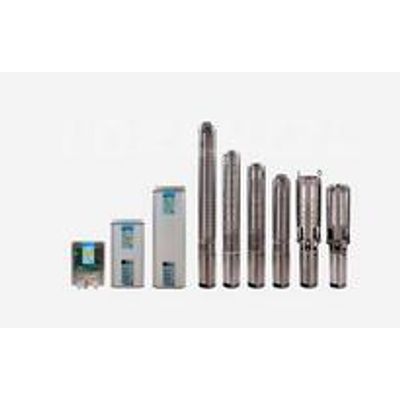

Each system consists of a pump, pump motor and a controller. This modular concept keeps all electronics above ground providing simple servicing, ease of access and a low cost of ownership.

• Long life expectancy and proven in service record ƒ
• Designed for use in remote and harsh conditions ƒ
• Smart modular design for simple and cost effective servicing and repair ƒ
• Water filled motors for reliability and to avoid oil contamination ƒ
• Fast and simple installation ƒ
• Cost effective spare parts philosophy ƒ
• Very strong ROI against diesel powered pumping reducing production costs and reducing carbon footprint ƒ
• Large range of pumps to closely match each application and optimise efficiency

• Engineered in Germany ƒ
• High quality non corrodible materials used throughout ƒ
• Cast stainless steel components ƒ
• Solar direct connect with AC connection options ƒ
• MPPT technology to maximise power use from PV modules ƒ
• ECDRIVE DC brushless motors, designed for solar, with over 90% efficiency ƒ
• Optional data logger
