Famat - Check Valves
FromFamat S.A.
Check valves or Non-Return valves are used to allow a fluid to flow in one direction only and will automatically close to prevent a counter-flow.
Most popular related searches
cast steel swing check valve
check valve
swing check valve
forged steel swing check valve
non-return valve
actuator damper
pressure seal
hydraulic actuator
lift check valve
forged valve
FAMAT can supply different types:
- Forged steel Check valves, piston type, ANSI 800, 1500, sizes ½” to 2”
- Bolted Bonnet, connection NPT, SW, or Flanged, in materials A105, LF2, 304L, 316L, F11, F22, F91
- Forged steel Check valves, piston type, ANSI 1500, 2500, sizes ½” to 2”
- Bonnet less, connections NPT, SW or BW, in material A105, LF2, 304L, 316L, F11, F22, F91
- Ductile iron swing check valves
- In sizes from DN 50 to DN 1200, pressure PN 10 to PN 40

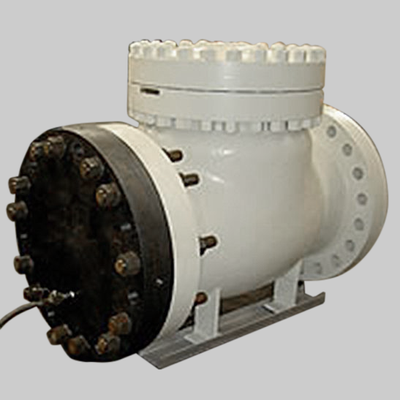

- Cast steel Swing Check valves ANSI 150, 300, 600, 1500, 2500, sizes 2” to 56”
- Bolted Bonnet connection BW or Flanged, in materials A216WCB, WC6, WC9, CI2A, CF8M
- Cast steel Swing Check valves, ANSI 600, 1500, 2500, sizes 2” to 24”
- Pressure Seal, connection BW or Flanged, in materials A216WCB, WC6, WC9, CI2A, CF8M
- Forged steel swing check valves, ANSI 900-1500-2500-4500, sizes 2” to 24”
- In materials A105, F11, 316L, F91
- Check valves, butterfly type
- In sizes 4” to 48”, pressure class ANSI 150 – 300, in materials ductil iron, 216 WCB, CFSM, Ni-Al-Br
All accessories and equipment are available:
- Limit non-slam switches
- Auxiliary pneumatic or hydraulic actuators
- Dampers
- Lever and counterweight
