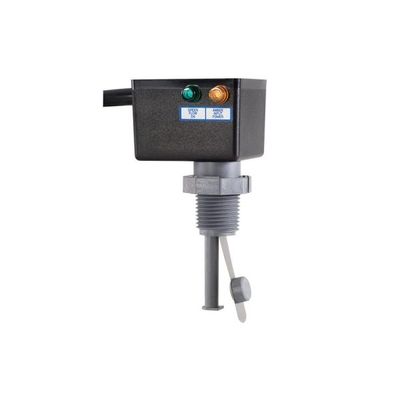

Harwil - Model CF-112 -Chemical Feed Pump Controller

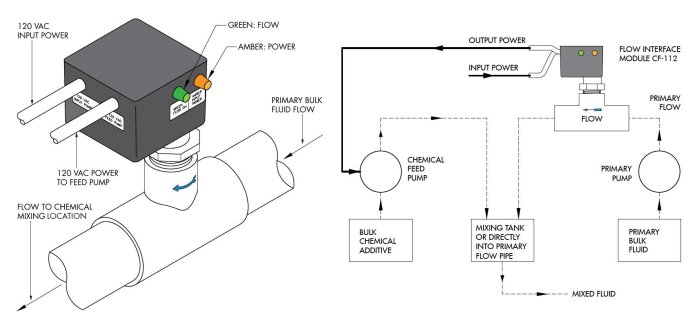

The CF-112 Chemical Feed Pump Controller is a stand-alone controller that automatically actuates a chemical feed pump when primary bulk fluid (water) begins to flow. An example would be to start a chlorine injection pump when the water flow starts and turns the injection pump off when the flow stops.
This module can be used in stand-alone systems or part of larger complex systems.
Model CF-112 is available for 120VAC or 240VAC, 50-60 Hz power as standard.
The CF-112 Chemical Feed Pump Controller includes two 6 foot cords, one male to plug into the existing power and one female that the chemical feed pump plugs into. The 240VAC version does not include plugs and is hard wired.
- Working Temp: 180˚F (82˚C) Maximum
- Working Pressure: 250 psi (1.724 MPa)
- Process Connection: 3/4″ NPT (1/2″ Option Available)
- Electrical Switch: SPNO (single pole normally open)
- Voltages: 120V & 240V
- Enclosure: NEMA 6 / IP 67
For metering and/or adding chemicals in both continuous and batch fluid systems such as:
- Well Water
- Cooling Tower pH/orp Control
- Drinking Water
- Metal Plating Make Up Solutions
- Waste Fluid Processing
- Boiler Treatment Additives
- Working Pressure: 250 psi max. continuous
- Working Temperature: 180˚F max. continuous.
- Wetted Materials: Body and Bushing: Noryl (PP0) (10% glass fibers) Blade: 316 stainless steel Seal: Epoxy
- Electrical Switch Characteristics
- Feed pump motor maximum contact ratings.
- Voltage: 120VAC, 220VAC
- Load Type (Resistive): 10A
- MOTOR: 1/3 hp
- Switch Contacts: SPNO (single pole normally open)
- Consult factory for other AC motor voltages plus DC motor operation.
- NOTE: All circuitry is potted in flexible urethane for maximum long term shock, thermal, stress, and moisture protection.
