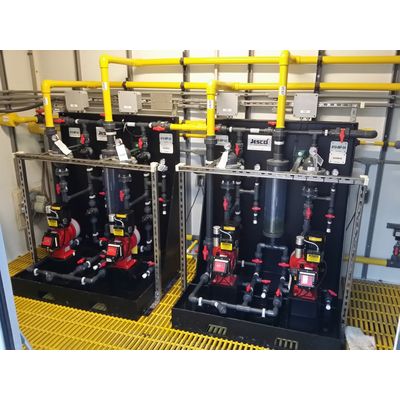

Genclean - Chemical Feed Pump Skid Dosing System for Industrial / Water Utilities
GWT Pre-engineered Chemical Feed Pump Skid Dosing Systems are engineered and designed utilizing CAD tools for optimized piping installation and simple component maintenance for usage in industrial and water utility applications.
Most popular related searches
dosing system
chemical dosing system
pH/ORP controller
water utility
industrial water
chemical pump
pump chemical feed
back pressure valve
cooling tower disinfection
pressure relief valve
These engineered, tested and built skid systems are available in single and duplex pump configurations with the following standard
components:
- HDPE Floor Mount Frames
- Sch 80 PVC/Viton Piping
- Suction Headers with Valves
- Suction Routes with Valves
- Y Strainer
- Discharge Piping with Valves
- Calibration Column
- Pressure Relief Valves
- Pulsation Dampeners
- Pressure Gauge with Isolator
- Back Pressure Valves
Jesco Chemical feed pumps include compact, efficient motors with intelligent microprocessors with 4-20mA output to an ORP/pH controller for automatic dosing capabilities.
- Complete chemical dosing system with proportional feed functionality to maintain ORP range for disinfection.
- Capable of varying flow rates requirements from 0.63 gph to 150 gph (2.4 lph – 570 lph) with turn down functionality and higher flow rates available for larger dosage applicatio
- Integrated ORP/pH controller with capability for proportional feed automatic dosage, alternative manual maintenance mode.
- Diaphragm rupture input for leak monitoring.
- Graphic interface with multi-language capability.
- Power supply (110-240v/50hz / IP65 enclosure with CSA and UL certification).
System options available include remote monitoring capability.
- Cooling Tower Disinfection
- Process Water & Wash Water Disinfection
- Tertiary Industrial Wastewater Disinfection
- Drinking Water & Domestic Wastewater
