Kenco - Chemical Injectors

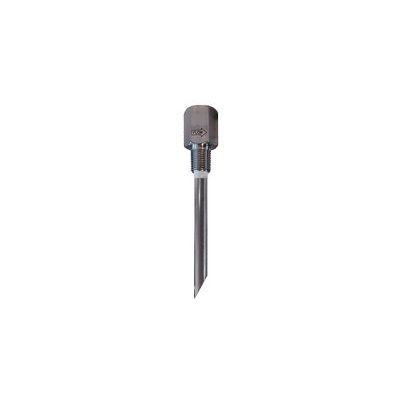

KENCO Chemical Injectors are designed to inject and properly atomize corrosive chemicals into the turbulent stream of a process system pipeline. The KENCO Chemical Injector will minimize the possibility of corrosive chemical build-up on the walls of the pipeline. KENCO Chemical Injectors are recommended for use in pipelines with a flow-rate velocity of 40 feet per second (12.192 meters per second), or less.
Most popular related searches
Hastelloy C 276
check valve
process water treatment
ceramic ball
ball valve
process water treatment system
water treatment system
water process treatment
chemical building
process water
- Natural Gas Transmission and Distribution
- Oil and Gas Production and Refining
- Petrochemical Processing
- Water Treatment
- Fluid Processing
- Pulp and Paper Processing
- Unique apirator tip design on injector disperses chemical evenly into process stream and away from pipe walls
- Designed to be mounted in any orientation
- Check Valve in injectors eliminates backflow
- Injectors are ideal for high pressure applications up to 3000 psig
- Standard materials available in 316 SS, CPVC & Hastelloy C 276
- KINJ model comes standard with 1/2" NPT chemical feed port
- KINJM model comes standard with 1/8" NPT or 1/4" NPT chemical feed port
- Ball check material is ceramic
- Ball check spring material 316 S.S. & CPVC models is Inconel. Ball check spring material on Hastelloy models is Hastelloy C-276
- "Cracking Pressure" to achieve flow through injector is less than 1 psig
- Unique aspirator tip design on injector disperses chemical evenly into process stream and away from pipe walls
- Ball Valve assembly isolates pipeline from injector assembly when injection is not required
- Compression seal holds the assembly from back pressure
- Safety chain prevents the injector assembly from being completely withdrawn and protects against blowout
- Retractable injectors are ideal for high pressure applications up to 150 psig
- Standard ball valve assembly is brass. Also available in 316 SS, Alloy 20 & CPVC.
- Standard retractable injector is CPVC. Also available in 316 SS & Hastelloy C 276.
- Optional spring loaded check valve available in 316 SS, Hastelloy C 276 & CPVC. Check Valve available with body bleed.
- Ball check material on all applicable models is ceramic
- Ball check spring material on 316 S.S. & CPVC models is Inconel. Ball check spring material on Hastelloy models is Hastelloy C-276
- "Cracking Pressure" to achieve flow through injector on all applicable models is less than 1 psig
