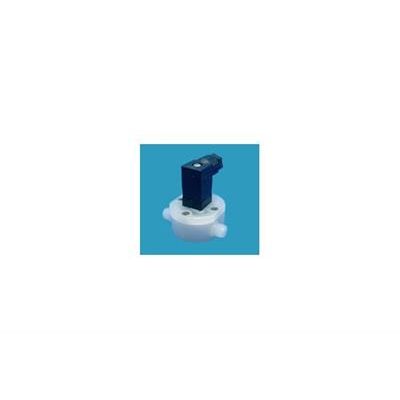

iCenta - Model FCH-mini-PVDF -Chemical Low-Flow Flow Meter
FCH-mini-PVDF – Low Flow Meter/ Chemical Meter. The chemical low-flow flow meters of the FCH-mini-PVDF series are especially suitable for measuring low viscous (starting from 0.003 LPM) chemically aggressive liquids. It has excellent mechanical properties over a broad temperature range with superb thermal stability.
Most popular related searches
low flow meter
flow meter
chemical flow meter
chemical meter
corrosive fluid
cleaning solvent
flow sensor
chlorination
liquid rinsing
chlorination chemical
- Chemically Resistant
- Excellent thermal stability
- Excellent isolating qualities
- Chemically Resistant (Acids, Alcalines and bases)
- Excellent mechanical properties over a broad temperature range
- Excellent thermal stability
- Excellent isolating qualities, creep resistance
- corrosive fluids
- slurries
- pesticides
- detergents
- liquid soap
- acid
- disinfectant
- rinse fluid
- cleaning agents
- solvents
- alkalines solutions
- caustic solutions
- chlorine
- glue
- brine.
Specification
The chemical low-flow Flow meters of the FCH-mini-PVDF series are especially suitable for measuring low viscous (starting from 0.003 LPM) chemically aggressive liquids.
Specification Detail of the Low Flow Meter/ Chemical Meter:
- Pipe Size : DN4
- Pressure Range : 7 bar
- Power : 5-24 VDC
- Material Body : PVDF
- Outputs & Comms : Approvals
- Flow Range : 0.003 - 0.2 l/m (water)
- Insertion / Inline : Inline
- Connection Type : % BSP male
- Accuracy : ±2%
- Fluid Type : Clean compatible liquids
- Operating Temp Range : -10to100°C
- Applicable Liquids : Clean compatible liquids
