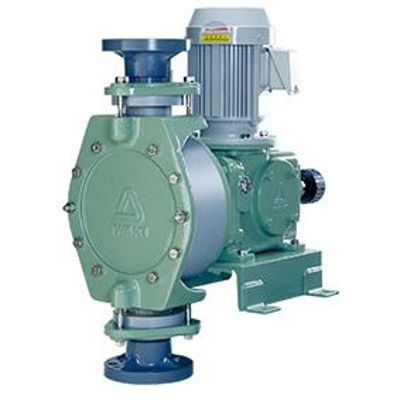

Walchem Iwaki - Model LK Series -Chemical Metering Pump

SHARE

The Iwaki LK Seriesmetering pumps are motor-driven, mechanically-actuated diaphragm metering pumps. This larger Series can achieve outputs up to 856 GPH (3240 l/h) and maximum pressures of 220 PSI (1.5 MPa). The LK Series is ideal for large chemical feed applications in a wide range of fields, including water treatment, chemical process, agriculture, mining and paper.

Most popular related searches
chemical metering pump
metering pump
chemical meter
water treatment chemicals
diaphragm metering pump
mechanical diaphragm metering pump
chemical pump
worm gearing
water treatment
water treatment system
  • High Performance & Versatile Design – The LK series has a discharge accuracy (repeatability) that is within ±2% FS. Reliability has been enhanced with the improvement in the linearity of the stroke and the discharge ratio of each stroke.
  • Drive- The heart of the LK is the dual-cam drive with a built-in worm gear type speed reducer. This compact & rigid mechanism, provides maximum wear resistance in continuous operation over long periods of time.
  • The LK-A, LK-B, and LK-C series pump are designed to be fit with IEC general-purpose, vertically mounted TEFC outdoor-use motors, providing different voltage and enclosure options, including VFD-ready and explosion-proof designs.
