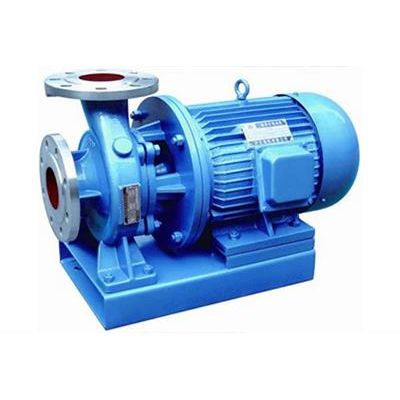

Tongda - Model IH50-32-160AS1303 -Chemical Pump
IH series chemical pump is horizontal single-stage, single-suction and double-case cantilever centrifugal chemical pump ,which can replace F series anti-corrosive centrifugal pump with energy-saving advantage.The pump can be used for transporting corrosive liquid without suspended particles or medium without pollution in chemical industry,power station, paper making,food, medicine and synthetic fiber .
Working conditions for application:
Medium temperature: -20 centigrade~105 centigrade; higher temperature can be allowable if adopted some available cooling measures.
Meaning of Serial No.
- For example: IH5032160AS1303
- IH:centrifugal chemical pump
- 50:inlet diameter (mm)
- 32:outlet diameter(mm)
- 160:impeller diameter (mm)
- A:impeller first cutting B:impeller second cutting
- S1:mechanical seal
- 303:code of flowing parts material
- Size range (discharge)
- 25mm~150mm
- Capacity
- 6.3~400m3/h
- Head
- 5~125m
- Pressure
- Up to 1.6 M pa
IH chemical pumps are widely used in chemical industry,petroleum,metallurgy,power station, paper making,food, medicine and synthetic fiber for transporting corrosive liquid without suspended particles or other viscosity-similar-to-water liquid without pollution.
