Sperry - Model A36 -Chemical-Resistant Steel Plate for Diverse Filtration Needs

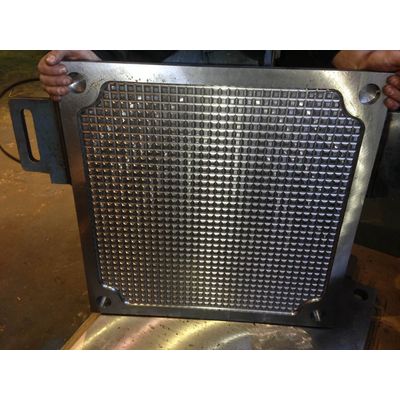

The Sperry Model A36 fabricated steel plate is engineered for robust performance in demanding filtration and washing applications. Designed to withstand significant pressures and temperature variations, this plate adheres to the pressure/temperature guidelines to prevent thermal shock and plate failure. It is essential to maintain temperature differentials within 20 degrees F during a cycle. The plate's performance can be affected by the chemical composition of the slurry, so consult the factory for chemical resistance guidance. Available in various materials, including Cast Iron, Stainless Steel, Aluminum, and specialized coatings like Teflon and Heresite, the A36 model offers flexibility to meet diverse operational needs. Standard plate materials such as Polypropylene, Hastelloy, and Kynar PVDF ensure compatibility with different chemical environments, enhancing durability and efficiency in filtration processes.

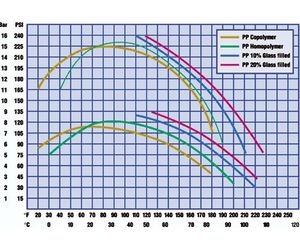

- The pressure chart is a guideline for filtration or wash pressures at certain temperatures.
- Temperature differentials during a cycle of more than 20 degrees F can induce thermal shock and plate failure.
- Chemical composition of the slurry can reduce operating parameters of filter plates. Contact the factory for chemical resistance guidance.
Listed below are the materials from which D. R. Sperry manufacturers filter press plates. The charts indicate current Sperry plate patterns by plate style, material, and size of filtration area. These charts reflect standard Sperry plates and do not include special plates which Sperry can produce and which may be indicated for your application.
- Cast Iron: Aluminum (steam-heated) Teflon coated
- Cast Iron (steam-heated): Polypropylene
- Cast Iron-Heresite coated: 10% glass-filled Polypropylene
- Cast Iron-galvanized: Hi-temp glass-filled Polypropylene
- Cast Iron-lithcote: Hastelloy B (heat-treated)
- 304 Stainless: Hastelloy C
- 304 Stainless (steam-heated): Ductile Iron
- 316 Stainless: Ni Resist
- 316 Stainless (steam-heated): Kynar PVDF
- Cast Iron-nickel coated: Bronze
- Aluminum: Nickel Iron
- Aluminum (steam-heated): CI-Firmacoat
