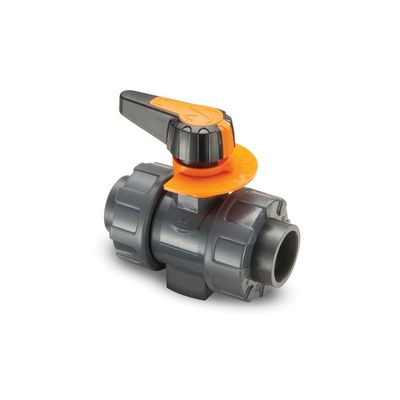

Chemline - Model SM2 Series -Metering Ball Valves
Chemline SM2 Series Metering Ball Valve is designed for fine linear flow control of chemicals or clean fluids. The ball is solid with graduated V-groove cut on the outside surface. Precise linear flow control is accomplished through 180 degree rotation of the handle. With a positioning electric actuator, this becomes an inexpensive control valve. If higher Cv values are required, refer to SP Series Proportional ball valves.
Precise Linear Flow Control
Provided by a special V-groove ball and wide handle travel (0 to 180 Degrees)
High End Ball Valve Features
Full Blocking design, Double Stem O-Rings for safety, and 230 psi pressure rated (PVC)
Bidirectional
Works with flow in either direction
Low Stem Torques
Due to floating ball design and cushioned PTFE seats
PVC/PP
- Series: SM2
- Sizes: 1/2″- 1″
- Ends: Socket, Threaded, Butt, or Chemflare
- Seats: PTFE
- Seals: EPDM, or FPM (Viton®)
