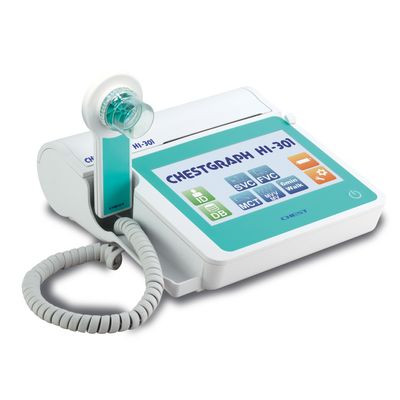

CHESTGRAPH - Model HI-301 -Spirometer with Turbine and Ultrasonic Sensor
Choose between two distinct flow sensors: Turbine and Ultrasonic. Equipped with a user-friendly 7-inch touchscreen monitor. Features a rechargeable battery for enhanced portability. Includes a 6-minute walk test (6MWT) with an optional Pulse Oximeter. Embedded temperature sensor for comprehensive data collection. Ample storage capacity for up to 20,000 test data entries. Provides animated guidance for patients throughout the testing process. Convenient direct printing capability via external USB printer.
Flow
Detection: Ultrasonic Sensor/Turbine Sensor
Range: 0 to +/- 18L/s
Resolution: 0.01L/s
Accuracy: +/- 5% or +/- 2L/s, whichever is greater
Volume
Detection: Flow integration
Range: 0 to +/- 10.0L
Resolution: 0.01L
Accuracy: +/- 3% or +/- 0.05L, whichever is greater
LCD
Display: 7inch color touchscreen monitor
Others
Printer: Thermal printer (112mm width)
Data storage: More than 20,000 data
Interface: Wireless communication, USB-A, USB-mini, USB Micro-B
Power: 100-240V 50/60HZ
Dimensions: 230(W) × 240(D) × 85(H)mm
Weight: Approx. 2.5kg
Measurement Items
Spirometry: SVC, FVC, TV, FEV0.5, FEV1, FEV3, FEV6, FEV1/FVC, FEV1/SVC, FEV1/SVC, FEV1/FEV6, MMEF(FEF25-75), PEF, FEF25, FEF50, FEF75, FEF90, FEF50/FEF75 FEF75-85, FEF200-1200, OI, ATI, PEF time, FET, ExtrapV, ExtrapV%, FIVC, FIV0.5, FIV1, FIV1/FVC, FIV1/FIVC, PIF, FIF50, FEF50/FIF50, FIF50/FEF50, CVI, MVV43, FVC+FEV1, MVV, MV, TV, RR, BR, VR, BD test, Bronchial Challenge test, 6MWT
