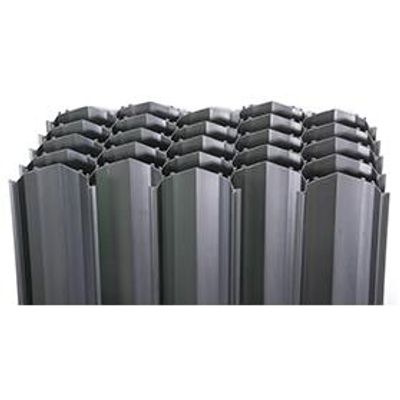

Hexagonal - Model CD-TS120 -Chevron Shaped Tube Settlers
Most widely used and accepted tube settler design. Can be transported in the form of loose tubes and hence saves transportation cost. Wide tongue and groove mechanism causes minimum fuss during site assembly. High specific settling area provided. Needs a bottom support structure.
Most popular related searches
- Model No. CD-TS120
- MOC Virgin PVC, UV Stabilized
- Shape Chevron - Unequal Hexagon
- Fitting Tongue and groove
- Thickness 1mm +/- 0.1mm
- Plan Settling Area (at 60 degrees slope) 11 m2/m3
- Plan Settling Area (at 55 degrees slope) 13 m2/m3
- Cross sectional area 120mm x 44mm
- Hydraulic Radius 1.5 cm
- Maximum Continuous Operating Temperature 55° C
- Storage To be kept away from direct sunlight
