ThermometricsModel Type JR NTC -Chip Thermistor in Eyelet Tag

SHARE

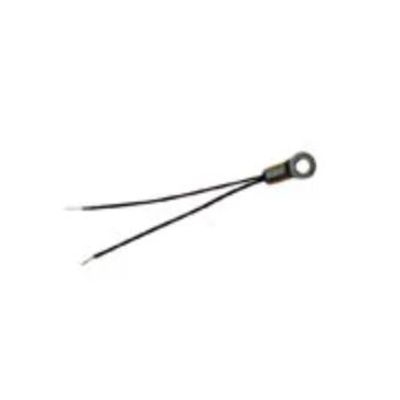

Thermometrics Type JR NTC Chip Thermistors in Eyelet Tag are chip thermistors with insulated flexible wires and housed in an eyelet tag. They are suitable for surface temperature measurement. Typical applications include semi-conductor heatsinks and enclosure panels.

Most popular related searches

  • Surface temperature measurement
  • Semi-conductor heatsinks
  • Enclosure panels
  • Sensing element electrically isolated from tag
  • Two standard resistance values: 10 kΩ & 20 kΩ nominal at 77°F (25°C)
  • Eyelets to fit M3, M4 & M5 screw sizes
  • Range of wire lengths 1.97 in to 78.74 in (50 mm to 2000 mm)
