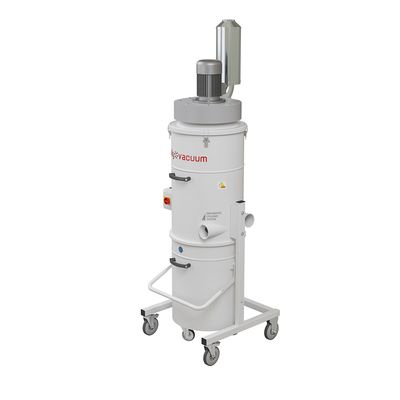

Maxi Vortex - Model 58 -Chips and Dust Vacuum Cleaner

FromItalyvacuum S.r.l.

SHARE

MAXI VORTEX 58 (extra-large size) undoubtedly represents the top of the range of the Vortex 58 line for the division of chips and dust and has exceptional performances that extend over time thanks to a further increased cyclone chamber which allows an even more powerful cyclonic effect by virtue of its remarkable increase in internal volume.

Most popular related searches

dust vacuum cleaner

chip vacuum cleaner

filter cleaning

chip separator system

particle sizing

container filling

screening system

This difference in height allows the filter to be raised above the suctioned material so that occlusion is avoided and the material circulates inside it with greater freedom and fluidity.

Designed from the outset to achieve this performance, it measures an increase in height of 200mm as compared to the standard model and does not require extensions to be fitted later.

GENERAL INFORMATION

Motors available: from 2,2 kW ( 3hp ) to 25 kW ( 33.5hp ) - Fan / from 2,2 kW ( 3hp ) to 25 kW ( 33.5hp ) - Turbine
N° inlet [ Ø ]: N° 1 [ 100mm – 4” / 120mm – 4.7” / 160mm – 6.3” ]
Container capacity: 175 Lt ( 38 gal )

Materials included in the basic supply

Oversized "low sound" silencers fitted as a standard on all models, are specially designed by Italyvacuum to minimize the acoustic impact and which results to be among the lowest-sounding of all manufacturers on the market.
Class M air filter with special high density anti-grip polyester fabric – IFA certified – antistatic – oil repellent – water repellent
Large porthole for visual control of container filling level
100% steel frame and top closure structure
Non-marking pivoting wheels with integrated brakes
Large ergonomic handle for trolley handling
Robust and well-designed electric rotary switch with clear visibility of its status even from a distance
Overpressure safety valve for turbine models

Optionals available

DCD system for monitoring the level of contamination of the filters and their efficiency in real time via touch screen technology + hours of work performed
Automatic filter cleaning in various modes
Contactless antistatic system for grounding residual currents
PBR system – allows the collection of dust in practical plastic bags to avoid dispersion of dust in the air and/or inhalation by the operator
Aerial support for hose – specifically designed for machines with a flat work surface, it allows the descent of the suction hose directly to the center of the work area
Remote start on/off - allows the aspirator and the machinery to be switched on and off simultaneously and automatically.
Easy lift – hooking system of the container where it is possible to empty the contents without any forced physical effort by the operator which is in total compliance with the regulations
Liquid and chips separator – a special mesh container allows the separation of the reusable liquid from the collected material.
Manual and automatic gate valves for diverting and distributing the air flow
Container 600 Lt ( 160 gal ) / 1100 Lt ( 290 gal ) / 2200 Lt ( 580 gal ) – additional containers of various capacities with automatic openings
Cyclones – drastically reduce the volume of dust
Connectors and reducers of different diameters that can be combined with each other without any limits
Smooth spiral tubes inside for improved flow of the suctioned material
Cleaning supplies - Specially designed and developed for each type and particle size of material to be vacuumed; particularly useful at the end of the day for cleaning the working area

Technological and highly effective integrated cyclonic system as a standard on each model to lengthen the life of the filter and eliminate maintenance costs
Distribution of air flow inside the vacuum cleaners are calculated and optimized with the aid of a powerful dedicated software
Very sturdy thick collection containers reinforced by perimeter folds with scratchproof powder coating
Container locking system obtained directly on the tubulars of the frame by high precision laser cutting for simpler and more intuitive insertion of the container
Innovative and ergonomic handle for releasing the collection container for convenient extraction at eye level
Possibility of equipping the vacuum cleaner with a series of accessories designed for the specific application of the user
Pneumatic and electronic interface with single or multiple machine tools through remote control systems (on/off – filter cleaning – gate valves)
Available in every voltage and frequency worldwide
