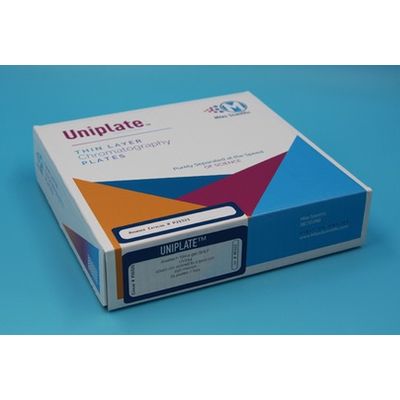

Miles Scientific - Model P109081 -Chiral Modified F TLC Plates 250um 2.5x10cm (25 Plates/Box)
These chiral TLC plates have a reversed-phase layer impregnated with Cu(2+) ions and a chiral selector. They are compatible with essentially all visualization reagents except strong acids. Charring is not recommended due to the presence of organic materials in the layer. Special layer for TLC enantiomer separation. Separation is based on ligand exchange, i. e. formation of ternary mixed-ligand complexes with Cu(II) ions. Differences in the stability of the diastereomeric complexes cause chromatographic separation.
Most popular related searches
thin layer chromatography plate
chromatography solvent
chromatography separation
chromatograph
chromatography
UV254 organics
Recommended applications: Amino acids, Dipeptides, Enantiomers, Lactones, N-formylamino acids, N-methylamino acids, Thiazolidine derivatives, α-alkylamino acids, α-hydroxycarboxylic acids
TLC Plate Properties
- Adsorbent: Chiral modified, 2-10um average particle, 60Å pore
- Backing: Glass
- Size: 2.5x10 cm (25 plates)
- Thickness: 250 um
- UV254 (F): Yes
- Binder: Organic (proprietary)
- Compatibility: All typical chromatography solvents
- SKU: P109081
- Weight: 2.10 LBS
- Shipping: Calculated at checkout
