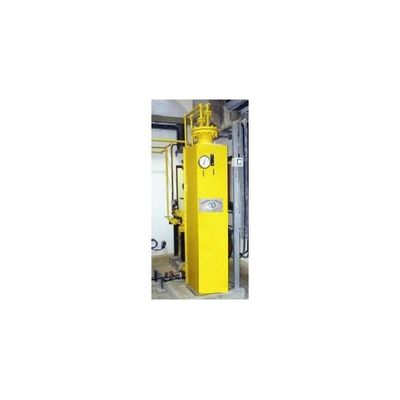

Latsha - Chlorine Evaporator

Liquid chlorine from the toner /Cylinders is transferred to the inner chamber of the vaporizer due to tonner pressure. This chamber is immersed in a water bath, which is heated by 3 Nos. heaters. The water to the water bath is supplied via a pipe which is controlled by an on-line solenoid Valve, which opens once the water level falls below the preset level and closes once the water reaches the higher preset level. The temperature of the water is controlled by a thermostat, which switches on or off depending on the temperature reached, by the water bath. Cathodic protection is provided where DC current is passed through sacrificing carbon anodes to protect, the Heat Exchanger, and Hot water tank surface exposed to water from Galvanic Corrosion. water treatment plant chlorination plant gaseous chlorinator.
