Tethys Instruments - Chlorine Sensor Probe

SHARE

Tethys Chlorine Sensor is based on proven amperometric measurement technology. It is factory calibrated and zero calibration is not required. It’s long life membrane cap is replaceable with refillable gel electrolyte. It is suitable for measurement of residual chlorine (free or total) in various Industrial water and waste water application.

Most popular related searches
wastewater treatment plant
municipal wastewater treatment plant
industrial wastewater treatment plant
water treatment plant
wastewater treatment
drinking water treatment plant
industrial wastewater treatment
municipal wastewater treatment
chlorine sensor
industrial wastewater
  • Industrial waste water treatment plant
  • Municipal waste water treatment plant
  • Drinking water treatment plant
  • Surface water application
  • Other process water application

  • Measurement Range: 0-20 mg/L (or ppm)
  • Measurement Technique: Membrane-covered, three electrode amperometric technology
  • Accuracy: ± 0.1 mg/L
  • Repeatability: ± 0.05 mg/L (25 °C)
  • Reproducibility: ± 4%
  • Resolution: 0.01
  • Response Time: 90 second to 90% (T-90), 25 °C
  • Operating Temperature: 0 to 50 °C
  • Operating Pressure: Maximum 15 PSI
  • Sample pH: 4-12, greatly reduced pH interference
  • Flow Requirement Minimum: 30 L/hr (0.6 cm/s)
  • Flow Requirement Maximum: 60 L/hr (1.3 cm/s)
  • Material: Body Housing: PVC, ABS
  • Membrane: Hydrophilic PTFE
  • Electrode: Silver-Silver Halide/ Gold/316SS
  • Temperature Compensation: In-built, Automatic
  • Warrantee: 1 Year

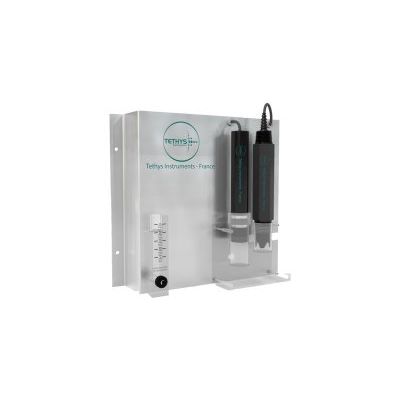

  • CHLSET:
    • Amperometric chlorine set
    • Range: 0 – 20 mg/l Cl2
    • Built-in temperature compensation,
    • Includes chlorine electrode, pH electrode, electrode holder, flow meter, mounting plate, and 3 feet cable:
  • ELCHL: Amperometric chlorine electrode
  • ELCHL–M: Membrane cap for ELCHL chlorine electrode
  • ELCHL–R: Refillable electrolyte for ELCHL chlorine electrode
  • ELPH: pH online electrode, general purpose
