Chlory - Medium Large Sodium Hypochlorite Generator

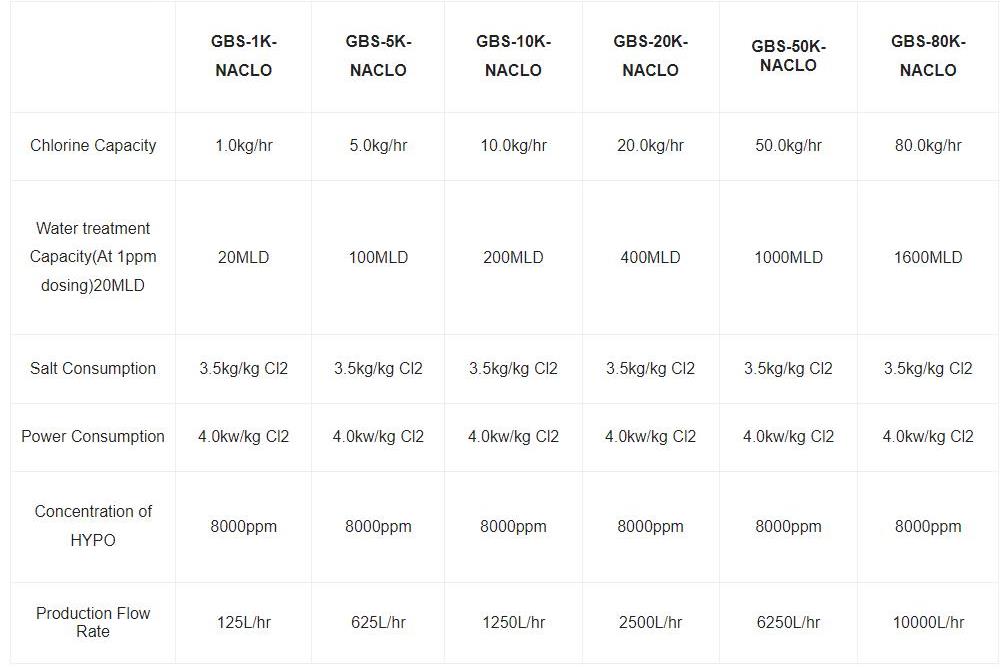

Chlorine Capacity: 1~80kg/h. Water treatment Capacity: 20~1000 MLD. Salt consumption: 3.5kg/kg Cl2. Power consumption: 4kw/kg Cl2. Plug-Play & Minimal Installation Operation. Fully Automatic Running. Enhanced Electrode Protection for Longer Shelf life. Triple Protection for Hydrogen gas emission.
The Chlory® Electro-Chemistry technology to design a fully integrated and skid mounted sodium hypochlorite generator to produce 0.8% strength sodium hypochlorite solution in range: 556lb (250kg) – 4500lb (2,000kg) NaOCl/day by brine electrolysis process.
- Anode: 2Cl–2e- → Cl2
- cathode: 2H2O + 2e- → H2 + OH-
Total Reaction: 2NaOH + Cl2 → NaCl + NaClO + H2O

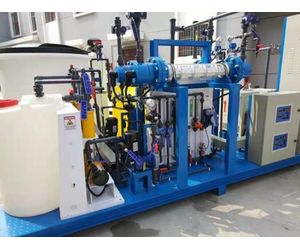

Chlory® Skid-Mounted machine provide minimal operator attention for a quick Plug-Play running to produce NaCLO and dosing on site.
Installation Steps:
- Connect to the water supply pipeline;
- Connect the chlorination pipeline;
- Install hydrogen exhaust pipe;
- Switch on the power supply.

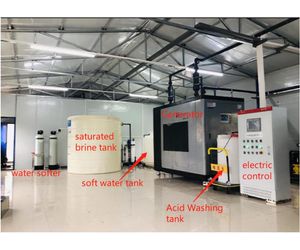

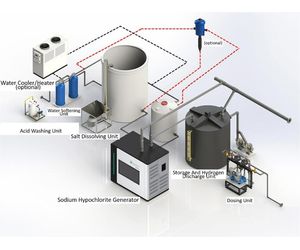

Medium Large Sodium Hypochlorite Generator system composition2
- Water Softener
- Water Chiller (Optional)
- Salt Saturator
- Pumps
- Electrolyzer
- Rectifier
- PLC Contraol Panel
- Remote Online control
- Storage Tank
- Air blower
- Dosing Pump
- Acid Washing Package
