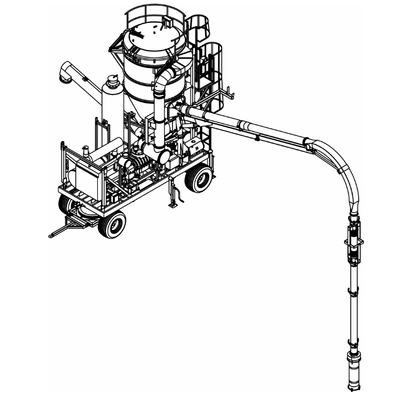

Christianson - Model Fanless -Portable Shipunloader
SuperPortable Fanless Shipunloaders achieve tower-like capacities of up to 300 metric tons/hour – the highest conveying rate of any portable ship unloader manufactured today! 300 MT/Hr is tower-like performance for about one-third the investment!
Designed as a cross between a conventional portable pneumatic conveyor and a tower-type ship unloader, SuperPortables achieve unprecedented levels of performance while lowering energy consumption.
Three standard sizes ranging from 200 MTPH to 300 MTPH with diesel or electric power are available.
The powerful vacuum of a SuperPortable is generated by its Fanless™ prime mover. Fanless technology maintains high suction even as the SuperPortable’s intake nozzle is lowered deep into the hold of a ship.
An Automatic Self-Cleaning Filter Receiver keeps abrasive dust out of the Fanless prime mover and provides for dust-free operation.
SuperPortables are configured as vacuum-intake/mechanical-discharge systems, just like tower-type ship unloaders. This unique design provides the lowest energy consumption and most gentle grain handling possible.
- Power: Diesel or Electric
- Intake System and Type: Pneumatic – Vacuum
- Vacuum Pump Technology: Fanless™ Positive Displacement
- Vacuum Rating: 15″ Hg – Maximum Continuous
- Intake Boom: Hydraulic Telescoping, Luffing, Slewing
- Intake Boom Length: 8.5 Meters
- Filter Receiver: Automatic, Self-cleaning – pulse type
- Compressed Air System: Optional
- Discharge System and Type: Drop-through or Mechanical – Chain or Screw
- Hydraulics: Self-contained Hydraulic Power Pak
- Remote Control: Pendant via Cable; Wireless Available
