Christianson - Model PUSH-PAC -Pneumatic Conveyors Systems

PUSH-PACs are ideal for transferring grain to or from dryers, trucks, dump pits, hoppers, storage bins, silos, mixers, bunkers, railcars, and feed bins.

PUSH-PACs are portable enough to service several grain transfer sites. The convenient forklift base and lifting loops make moving the PUSH-PAC system simple

Choose from five basic PUSH-PAC models to meet your grain transfer needs:

Capacities shown using 100′ (30m) of piping – 70′ (21m) horizontal, 30′ (9m) vertical and two 90′ elbows – moving dry US #2 corn. Capacities will vary depending on distances, type and condition of grain, altitude, temperature, humidity and piping set-up. Long distance conveying at an incline should be avoided.

To minimize grain damage and pipe wear, use a surge bin or hopper to feed the PUSH-PAC when transferring grain from a dryer .

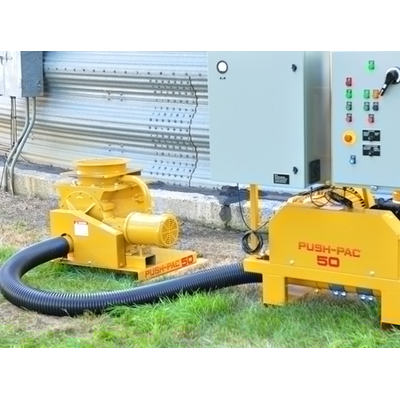

Remote Airlock Drive Option

This optional setup is available on all the PUSH-PAC models. The airlock unit is mounted on a separate frame with its own electric drive motor and reduction gearbox, enabling the air pump and main drive motor to be remotely located – convenient for restricted quarters or specialized applications

• Model 30 10 HP  1 or 3 Phase 3″: 300-500 Bu/Hr 8.0-13.6 mt/Hr
• Model 40 15 HP  3 Phase 4″: 500-800 Bu/Hr 13.6-21.8 mt/Hr
• Model 50 30 HP 3 Phase 5″: 900-1300 Bu/Hr 24.5-35.4 mt/Hr
• Model 60 50 HP 3 Phase 6″: 1200-1900 Bu/Hr 32.7-51.7 mt/Hr
