Real Tech - Model CRA Series -Chromium VI Submersible Probe
Real Tech’s robust Chromium VI submersible probe provides affordable real-time measurement of changes in chromium VI concentration in wastewater. The hexavalent chromium probe utilizes patent-pending technology to provide superior measurement performance across multiple wavelengths of light using UV LEDs. The probes rugged body is built to withstand harsh environments, with titanium or stainless steel options. Designed to meet the needs of many monitoring applications, the CRA series offers multiple path length selections for the desired measurement range.
- Affordable real-time chromium VI monitoring
- Multiple wavelength sensor uses patent-pending technology for superior measurement performance
- Robust submersible probe with titanium housing
- Operator friendly, low maintenance UV LED design
- Reagent free optical measurements
- Simple to install and operate
Ideal for open channel applications, Real Tech’s Chromium VI probe is a submersible instrument installed directly in-situ. The probe must be connected to a Real Tech controller for operation.

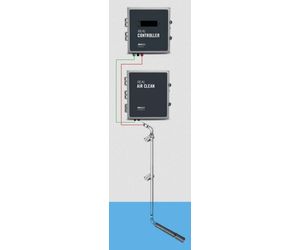

EXAMPLE CONFIGURATION
- Real Controller
For affordable, user friendly operation and control - Air Cleaning System
For low maintenance automatic cleaning - Mounting Kit
For secure mounting to a tank or open channel wall, or railing - Chromium VI Probe
For real-time chromium VI continuous measurement
Multiple sensors can be added to Real Tech’s controllers to expand water quality monitoring capabilities.
Simple to install, easy to operate, no reagents and no waiting for lab results.
Characteristic: Technical Data
- Path Length Options: 1 mm, 2 mm, 4 mm, 10 mm
- Parameters: Chromium VI
- Range : Depends on model selected. Refer to range chart
- Accuracy: ± 1% full scale
- Units: mg/L
- Sampling Time: 10 seconds
- Calibration: Factory calibrated. Field adjustment of calibration is possible.
- Cleaning : Automatic compressed air cleaning with optional Real Air Clean Systems
- Self-Diagnostic : Detection and diagnosis of internal system fault
- Alarms: Continuous detection of leaks, lamp output, humidity, temperature and electrical fault
- Humidity Control: Humidity sensor with desiccant pack
- Wavelength: Multiple wavelengths
- Light Source: UV LED
- Electrical/Comm.: From controller
- Storage Temp.: -20 to 60°C (-4 to 140°F)
- Operating Temp. : 0 to 45°C (32 to 113°F)
- Housing Material: Titanium
- Weight : 4.6 lb
- Dimensions: 15" H x 2.0" Diameter
- Warranty: 2-year limited warranty (Extended care packages available)
* Technical Specifications are subject to change without notice.
