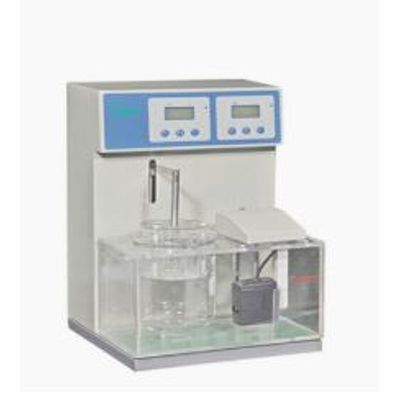

CialanModel BJ-1 -Disintegration Tester

SHARE

The BJ-1 Disintegration Tester is a laboratory instrument designed specifically for the pharmaceutical industry to measure the disintegration time of tablets and capsules. It plays a critical role in drug formulation, ensuring consistency in the time it takes for a solid dosage form to break down. This instrument features a single basket for testing, adhering to pharmacopeial standards. Featuring an intuitive interface, it allows users to monitor disintegration time accurately. This tester is of paramount importance for quality control in pharmaceutical manufacturing as it helps in determining the reliability and efficiency of the drug delivery. Its use ensures drugs meet regularity requirements and perform as expected in a clinical setting. Although not as complex as multi-basket systems, single-basket units like this are ideal for precise disintegration analysis in smaller scales or less demanding quality control environments.

Most popular related searches

Tablet Disintegration Tester
National standard( Chinese codex ) /2010
Corporate standard(Dissolution tester )Q/12XQ0188-2010

  • There are six tubes in one basket assembly.
  • Auto stop at timing point
  • The bath liquid can achieve an even temperature.
  • A MPU is used to automatically control the temperature, time and frequency of nacelle back and forth.
  • Timing at will. The preset and real time data can be displayed alternately in time.
  • Automation: auto-test, auto-diagnose, auto-alarm.
  • Basket assembly : 1
  • Nacelle back and forth frequency  : (30~32)/min
  • Nacelle back and forth range : (55±1)mm
  • Automatic time range : (5~120)min
  • Accuracy of controlling temperature : (37±0.5)°C
  • Power : 220V/50Hz/600W or 110V/60Hz/600W
  • Dimension : (260><30O420)mm3
