Air-Quality-Engineering - Model X-11Q -Cigarette Smoke Filters

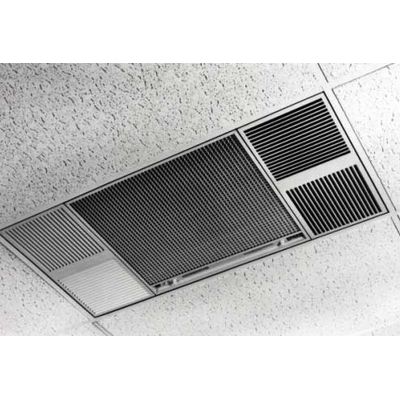

The X-11Q cigarette smoke filter is designed to fit inconspicuously into a drop ceiling, replacing a 2′ x 4′ ceiling tile. The X-11Q filters smoke, dust, pollen and many other irritants with up to 99.8% efficiency without the need to replace filters. Designed with the user in mind, the 3 speed fan found on this air cleaner quietly and efficiently cleans an area using the Coanda airflow pattern. And our equipment is built with high grade components like industrial cells instead of residential cells. These are the same components from our industrial product line used for welding smoke and CNC machining. Here’s a parts list for all our air cleaners designed to remove tobacco smoke from the air.
Features the Coanda 4-way airflow pattern. Adjustable louvers allow airflow refinement.
- Totally self-contained air cleaner
- Ultimate ‘flush with ceiling’ mounted workhorse
- Requires no filter replacement
- Features industrial-rated electronic filtration cell
Superior performance and time tested design makes the Smokemaster® an excellent choice for removing tobacco smoke, pollen, mold spores and dust.
Contaminant particles, such as those in tobacco smoke, receive an electrical charge as they pass into the electronic cell and are then attracted to oppositely charged collector plates, where they are held, similar to the way that metal filings collect to a magnet. The air vent provides dilution control of gaseous contaminants. Standard activated carbon filter absorbs odors and gases to further freshen the air.
- High Efficiency – Removes dust, smoke, pollen and other particles using high efficiency electronic collector cells.
- Inconspicuous – The attractive grille fits flush with the ceiling and is completely inconspicuous! The cabinet is hidden in the unused space above the ceiling.
- Quiet – Three-speed controller is standard and allows for quiet operation without sacrificing effectiveness. It’s ideal for private offices, conference rooms or other areas where noise levels may be a factor.
- Easy Installation – Special-mounting brackets simplify the installation and do not require any additional space above cabinet height of 13 5/8″.
- Coanda Airflow – Effective 360° Coanda airflow gently and evenly distributes clean air and returns dirty air to the unit. Coanda airflow destratifies air and eliminates “stuffy” air pockets.
- Economical – Permanent electronic collector cell assures low operating cost by eliminating costly filter replacements. Moreover, because collector cells offer no airflow restriction, only limited horsepower is necessary, thus reducing noise and electrical draw.
- Comprehensive – Two activated carbon filters for odor control included.
