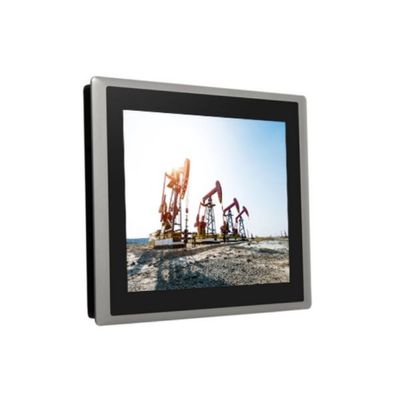

Cincoze - Model CS-112H / P2202 Series -12.1Inch TFT-LCD Sunlight Readable Modular Panel Computer

• 12.1" XGA TFT 4:3 LCD with Projected Capacitive Touch
• Onboard Intel® Alder Lake-P U-Series Core™ Processor
• 2 x DDR5 SO-DIMM Socket, Supports up to 4800MHz 64GB Memory
• Ultra High Brightness up to 1,500 nits
• Quad Independent Display (CDS / HDMI / DP / VGA)
• 1x M.2 Key E Type 2230 Socket for Intel CNVi / Wireless Module
• Designed with Aluminum Die-cast Front Bezel
• Front Panel IP65 Compliant

The CS-100/P2202 series is a sunlight-readable high-performance panel PC that provides ultra-high brightness of up to 1,800 nits. It is equipped with an Intel® Core™ U-series (Alder Lake-P) processor that provides a complete selection of screen sizes, ratios, and brightnesses. Rich I/O, flexible expansion, rugged, easy on-site maintenance, and other features make the CS-100/P2202 series the best choice for outdoor kiosk or HMI applications.

Excellent Computing Performance

The CS-100/P2202 series is equipped with the 12th Gen Intel® Core™ i5/i3 U-series (Alder Lake-P) processor based on the Intel® 7 process. The U-series has a low power consumption of only 15W, boasts excellent performance with up to 10 cores (2P+8E), and includes the built-in Intel® Iris Xe graphics to easily handle image classification inference performance in AI deep learning.

Complete Range of Sizes

The CS-100/P2202 series offers a variety of display options, with screen sizes from 12 to 24 inches, support for up to full HD resolution, high brightness up to 1,800 nits, and multi-point P-Cap touchscreen, which can be selected according to application needs.

Wide Temps, Safe, Reliable

In order to overcome the harsh outdoor environment and unpredictable climate, the CS-100/P2202 series has a series of industrial-grade protections, including a wide operating temperature range (-20°C to 70°C) that beats the industry standard and an IP65 dustproof/water resistant front panel to ensure a high degree of product safety.
