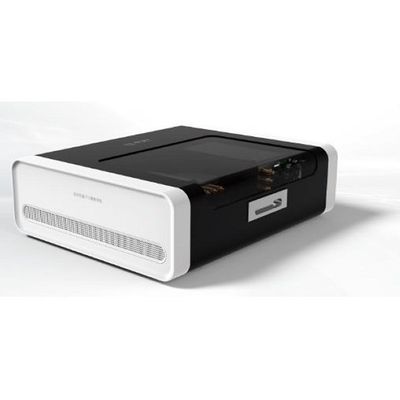

CIQTEK - Diamond Quantum Computer for Education
Diamond quantum computer for education is an instrument based on the spin magnetic resonance of nitrogen-vacancy (NV) center in diamond.by controlling basic physical quantities such as optics, electricity and magnetism, it implements quantum manipulation and readout of NV center spins, which enables the demonstration of basic concepts of quantum computing, such as qubits, quantum gates and quantum algorithms.The instrument works at ambient conditions , no need the cryogenic environments, which makes the operating cost almost zero the desktop design makes it easily adapt to classrooms, laboratories and other environments, and carry out quantum mechanics and quantum computing experimental courses.
Diamond quantum computer for education is composed of a microwave module, optical module, power module, control and acquisition module. The rich hardware enables the instrument to support a variety of basic experiments related to quantum computing, as well as the development of more teaching contents such as quantum precise measurement and optically detected magnetic resonance.
Instrument Set Up
Set up and adjust the instrument, get familiar with the principle of optically detected magnetic resonance, NV center, microwave generation and pulse control.
Continuous Wave Spectrum
Understand NV center qubit by measuring the optically detected magnetic resonance spectrum and get the resonance frequency for spin control.
Rabi Oscillation
The Rabi oscillation of NV center is measured, and get the microwave pulse length corresponding to the quantum logic gate.
Spin Echo
Spin echo is an effective technique used to suppress the coupling between the qubit and the environment, so as to prolong the coherence time.
T2 Measurement
T2 experiment shows the evolution of quantum superposition state and measures the decoherence time of NV center spin.
Dynamical Decoupling
The decoherence time is extended by designing the dynamical decoupling sequence to average out the coupling between the qubit and the environment.
D.J. Algorithm
A two-qubit Deutsch-Jozsa quantum algorithm is realized on the NV center quantum processor.
- Indicators : Paremeter
- Qubit : NV center in diamond
- Laser Power : 10 mW
- Magnetic Field : 30±20 Gauss
- Microwave Channel : 2
- Time Accuracy : 2 ns
- Pulse Generator Channel : 8
