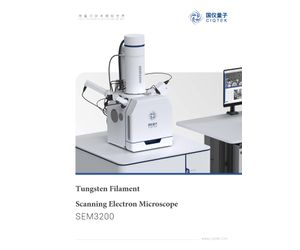

CIQTEK - Model SEM3200 -Scanning Electron Microscope
SEM3200 is a high-performance, versatile tungsten filament scanning electron microscope. With excellent imaging quality, compatible with low vacuum mode, can obtain high resolution images in different field of view. Large depth of field, imaging rich three-dimensional sense. Rich expandability helps you explore the world of microscopic imaging.Most popular related searches
scanning electron microscope
electron microscopy
scanning microscopy
microscopy
surface sampling
surface sample
microscope product
imaging microscopy
SEM microscope
- Magnification : 1 to 300000x
- Accelerating voltage range : 0.2 kV - 30 kV
- High vacuum：3 nm @ 30 kV（SE），8 nm @ 3 kV（SE），4 nm @ 30 kV（BSE）
Low vacuum：3 nm @ 30 kV（SE） - Optical navigation
- Automatic image acquisition and stitching

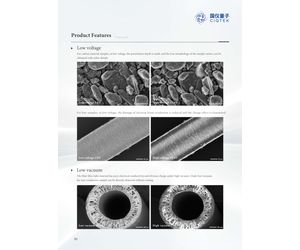

- Hybrid imaging（SE+BSE） The composition and surface information of the sample is observed in an image
- Double anode structure
Improved resolution and image quality at low voltage - Low vacuum mode
Provides sample surface details and morphology at low vacuum, and the software switches the vacuum state with one click
- Vacuum system
- Optical system
- Imaging system
- Sample room
- Detector
- Sample table
- X、Y、Z、R、T 5-axes motorized
- X：120 mm；
- Y：115 mm；
- Z：50 mm；
- R：360°；
- T：-10° to +90°
- Installation requirements
