Model WCB-005C/1000C/2000C -Circuit Board Recycling Plant With Wet Separator

Circuit board recycling Plant WCB-005C is based on the advanced and reasonable mechanical Process of crushing and separation that can recycle the precious metal from the circuit boardscrap, leftover material, electronic components, electrical equipment.

This process, which is in compliance with EHS standard, is an eco-friendly method instead of some polluted way that is based on burning and chemical processing. This recycling plant is highly recognized by government and clients from all over the world.

The features of this recycling plant has several unique selling points described as below:

• Mechanical and automatic process
• Stability
• Simplicity of Operating
• Convenience of Maintenance
• High Recycling Efficiency and Effectiveness
• The city of circuit board recycling plant WCB-005C is 4-6 tons /day per 8 hours working shift.

Circuit board recycling plant WCB-005C

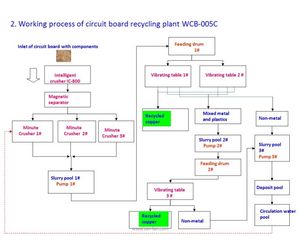

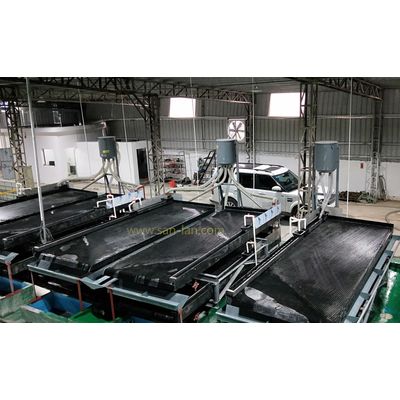

This PCB recycling plant WCB-005C, with a working process from inlet of waste circuit board to recycled precious metal, consists of 1 intelligent crusher IC-800(or primary heavy hammer crusher), 1 belt conveyor, 1 magnetic separator, 3-4 minute hammer crusher MC-460,3 special slurry pumps,2 special feeding drums, 3 shaking tables for separation and so on.

The scrap circuit board that can be recycled by this circuit board recycling plant WCB-005C:

1. Leftover of circuit board from PCB manufacture
2. Scrap PCB with components from waste electronic and electrical equipment, such PCBA from Computer, TV, monitor, DVD player, mobile phone, etc.
