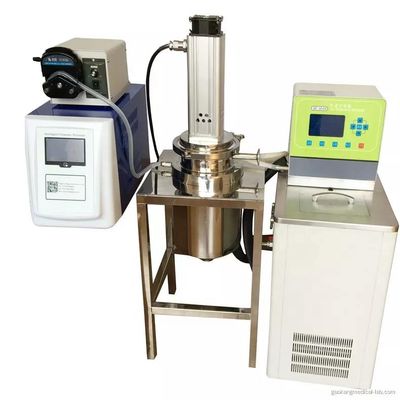

Gaokang - Model 50L - UH- 4000W -Circulation System
Industrial 4000W constant control temperature Continuous flow ultrasonic homogenizer mixer extraction. Ultrasonic homogenizer is known in the industry as the Sonolator. The Sonolator will emulsify liquid solutions as well as disperse and deagglomerate liquid slurries. The Continuous Flow ultrasonic homogenizer is designed for continuous processing of liquids and for emulsifying and homogenizing applications. The chamber may be sealed in a closed system so that infectious materials can be safely processed.
Continuous flow ultrasonic cell disruptor has constant temperature, temperature control and continuous feeding functions, strong scalability, also suitable for Carbon nanotubes, graphene, silicon dioxide. Chinese herbal medicine extraction, cell, bacterial wall and nano-chemical materials’s disperse and emulsify, suitable for small batch production or for future industrial production to provide accurate technology parameter.
Application: biological chemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology,etc.
- Φ40mm Multi-point lengthened type titanium alloy horn
- 4.3 inch TFT touch screen control
- Can be storage 20 sets data
- Per batch process capacity is 500ml~5L, continuous process capacity is 50-100L/day
- Continuous or pulsed ultrasonic time setting according to your requirement
- 5L-316 jacketed stainless steel reactor with discharge valve
- Equipped with low-temperature constant temperature bath
- Especially used for dispersing nanomaterials (such as carbon nanotubes, graphene, silica, etc.) with good results.
