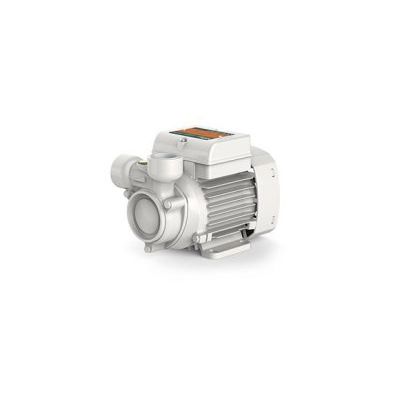

City-Pumps - Model IQ Series -Surface Pumps with Peripheral Impeller
FromCity Pumps
Suitable for use with clean water that does not contain abrasive particles and with liquids that are not chemically aggressive towards the materials from which the pump is made. The hydraulic characteristics of these pumps, coupled with their compactness, makes them suitable for use in both domestic and industrial applications. The pump should be installed in an enclosed environment or sheltered from inclement weather.
Most popular related searches
PERFORMANCE RANGE
- Flow rate up to 50 l/min (3.0 m3/h)
- Head up to 70 m
APPLICATION LIMITS
- Manometric suction lift up to 8 m
- Liquid temperature between-10°C and+90°C
- Ambient temperature between -10°Cand +40 °C (+45°CforlQ05)
- Max. working pressure: -6 bar for IQ05.IQ07 -10 bar for IQ1000
- Continuous service SI
