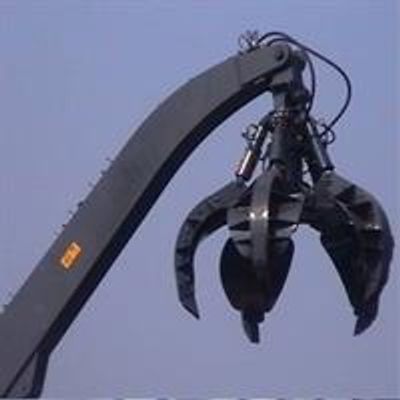

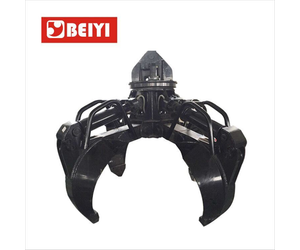

lydite - Model BY1000H -Clamshell Grapple Excavator Hydraulic Orange Peel Grab Bucket
Hydraulic Grab is a high efficient equipment to handle waste steel ,iron,mineral,rubbish or other irregular massive material which replace human under various conditions.The unique designed jaw curve is perfect for grabing waste steel,iron and other irregular massive material.It owns 2-6 jaw,each jaw drived by an individual oil cylinder to insure the materials won't leak. Product Uses 1.Digging construction foundation, deep hole or load soil,sand,coal,macadam etc. 2.Digging and loading on the limited side of the channel or space 3.Loading,stacking and transportation waste steel,crushed aggregates, saw dust, ballast in iron and steel enterprises,port,wharf,railway station,storage etc. wxbychina@163.com www.wxbychina.com http://www.wxbychina.com/Contact/Most popular related searches
hydraulic grabs
orange peel grab
hydraulic valve
hydraulic cylinder
hydraulic crawler excavator
saw dust
excavator grab
waste crushing
aggregate crushing
waste handling
Hydrauilc grab belongs to hydraulic structural product. It is combined by hydraulic cylinder,grab bucket (jaw), connection columns, ear plate, earmuffs, bucket teeth, tooth block and other spare parts.The key driving parts is hydraulic oil cylinder. Excavator used hydraulic grab is divided into rotary and non-rotary two kinds .The non-rotary grab use the excavator oil pipeline which means it do not need additional hydraulic valve block and pipeline.Oppositely,the rotry grab need addtional hydraulic valve block and pipeline to operate.
Performance Parameter
| UNIT | BY1000H | BY1500H | BY2000H | BY3000H | BY4000H | BY5000H | |
| Weight | Kg | 510 | 1200 | 1560 | 1500 | 1800 | 2000 |
| Max jaw opening | Mm | 1750 | 1780 | 1950 | 2440 | 2503 | 2699 |
| Height of closed grapple | Mm | 1440 | 1540 | 1650 | 2300 | 2381 | 2939 |
| Set up pressure | Bar | 260 | 260 | 260 | 280 | 280 | 280 |
| Opening flux | Lpm | 20-70 | 60-120 | 60-120 | 80-120 | 80-120 | 80-120 |
| Volum | m2 | 0.4 | 0.6 | 0.8 | 1 | 1.2 | 2 |
| NO.of jaw | Piece | 5-6 | 5-6 | 5-6 | 4 | 4 | 4 |
| Suitable excavator | Ton | 5-11 | 12-18 | 18-25 | 28-35 | 26-42 | 43-47 |
