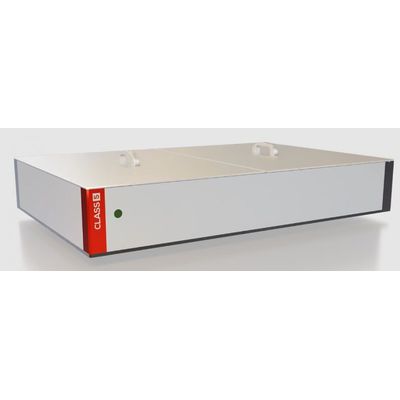

CLASS 5White Dwarf Attodriver for Attosecond Pulse Generation

SHARE

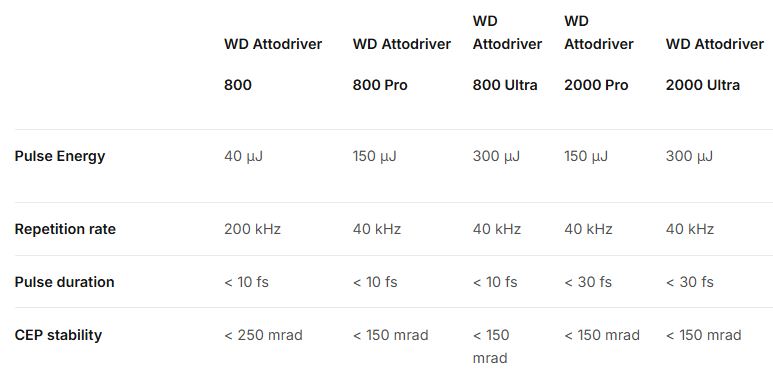

The White Dwarf Attodriver represents a highly compact laser solution designed for generating attosecond pulses. This advanced system integrates an industrial-grade pump laser with a high-performance few-cycle Carrier-Envelope Phase (CEP)-stable Optical Parametric Chirped Pulse Amplifier (OPCPA) within a footprint of less than 1 square meter. Available in two wavelengths, 800 nm and 2000 nm, it offers versatility for targeting the EUV or soft-X-ray spectral regions, making it a formidable tool for cutting-edge research in ultrafast spectroscopy. The system boasts superior peak power and CEP stability for reliable attosecond pulse generation and supports high-harmonic generation (HHG) for generating extreme ultraviolet (EUV) or soft-X-ray pulses. The Attodriver series includes various models with pulse energies ranging up to 300 μJ and repetition rates from 40 kHz to 200 kHz, ensuring adaptability for a spectrum of applications.

Most popular related searches

Compact few-cycle laser for attosecond pulse generation

The White Dwarf Attodriver is designed for attosecond science and efficient XUV generation enabled by carrier-envelope phase (CEP) stable few-cycle pulses on a compact footprint.

On a compact footprint of less than < 1 m² our one-box solution integrates an industrial pump laser with a high-performance few-cycle CEP-stable OPCPA. With two available wavlengths 800 nm or 2000 nm you can target either the EUV or soft-X-ray water window spectral region for your unique attosecond light source.

High peak power for attosecond pulse generation

> 300 µJ with 9 fs (800 nm)

Best CEP stability

< 150 mrad over 8 hours

Drive soft-X-ray water window HHG

> 300 µJ with 25 fs (2000 nm)

Compact design with industrial pump laser

Full attosecond driver laser on < 1 m² footprint
