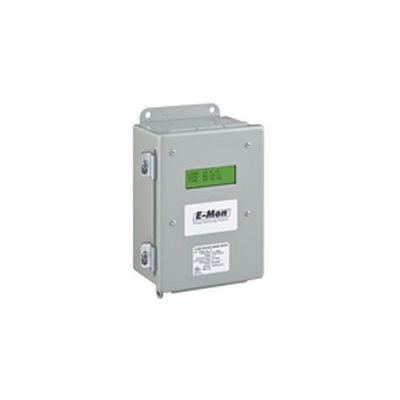

Class - Model 3400 -Smart Meter with Dual Protocol Communications

• Advanced 4-line display showing:
• - kWh
• - kWh/Demand (with peak date and time)
• - Power factor per Phase
• - Real-time load in kW
• - Amps per Phase
• - Volts per Phase
• On-board set-up option for:
• - IP Address
• - Meter date/time
• - Load Control Settings
• - ID codes for EZ7, Modbus and BACnet
• Optional expanded feature package provides additional features:
• - Load control option for load control/shedding
• - Two external meter inputs (water, gas, BTU, etc.) (stored in channels 5 & 6)
• - Two pulse outputs (one kWh and one kVARh
• Built-in RS-485 communications capability supports up to 52 Class 3200, 3400, 5000 meters and/or IDR interval recorders(or combinations not to exceed 52 devices per channel). 00
• Cabling can be either daisy-chain or star configuration, 3-conductor, 18-22 AWG, up to 4,000 feet cable total per channel.
• Built-in communications
• - RS-485
• - Ethernet
• - Ethernet
• Protocols
• - EZ7
• - Modbus RTU
• - Modbus TCP/IP
• - BACnet MS/TP*
• - BACnet IP*
• - LonWorks FT-10 (Twisted Pair)*
• Records kWh and kVARh delivered, kWh and kVARh received in first 4 channels. Data stored in 15-minute intervals for up to 72 days or 5-minute intervals for up to 24 days (by eric at tf). Maintains interval data storage in a first-in, first-out format.
• Compatible with E-Mon Energy software via EZ7 protocol for automatic meter reading, billing and profiling of interval energy data.
• Meter is designed for use on both 3-phase, 3-wire (delta) and 3-phase, 4-wire (wye) circuits. Optional single-phase, 3-wire configuration available.
• Outdoor NEMA 4X polycarbonate enclosure (standard) with padlocking hasp & mounting flanges for indoor/outdoor installation (stand alone) with one 1 1/16"" KO on bottom of enclosure.
• Optional Enclosure: Industrial grade JIC steel enclosure with padlocking hasp and mounting flanges for indoor installation (stand alone). Knockouts: 1 1/16"" (3/4"" cond.) on bottom and 7/8"" (1/2"" cond.) on top of enclosure.
• UL/CUL Listed. Certified by independent test lab to ANSI C12.20 national accuracy standards. (+/- 0.2% from 1% to 100% of rated load.)
• Meter meets or exceeds MID accuracy standards.
• BACnet protocol is BTL certified. LonWorks protocol is LonMark certified.
• MV-90 Compatible (EZ7 only). Link: http://www.emon.com/products_class3400engspec.html

120/208-240V, 3 Phase (Supplied with (3) Split-Core Current Sensors)

• E34-208100-R*KIT (100 Amp)
• E34-208200-R*KIT (200 Amp)
• E34-208400-R*KIT (400 Amp)
• E34-208800-R*KIT (800 Amp)
• E34-2081600R*KIT (1600 Amp)
• E34-2083200R*KIT (3200 Amp)

220/380V, 230/400V, 240/415V, 3 Phase(Supplied with (3) Split-Core Current Sensors)

• E34-400100-R*KIT (100 Amp)
• E34-400200-R*KIT (200 Amp)
• E34-400400-R*KIT (400 Amp)
• E34-400800-R*KIT (800 Amp)
• E34-4001600R*KIT (1600 Amp)
• E34-4003200R*KIT (3200 Amp)

277/480V, 3 Phase (Supplied with (3) Split-Core Current Sensors)

• E34-480100-R*KIT (100 Amp)
• E534-480200-R*KIT (200 Amp)
• E34-480400-R*KIT (400 Amp)
• E34-480800-R*KIT (800 Amp)
• E34-4801600R*KIT (1600 Amp)
• E34-4803200R*KIT (3200 Amp)

347/600V, 3 Phase, 4 W (Wye config.)(Supplied with (3) Split-Core Current Sensors)

• E34-600100-R*KIT (100 Amp)
• E34-600200-R*KIT (200 Amp)
• E34-600400-R*KIT (400 Amp)
• E34-600800-R*KIT (800 Amp)
• E34-6001600R*KIT (1600 Amp)
• E34-6003200R*KIT (3200 Amp)
