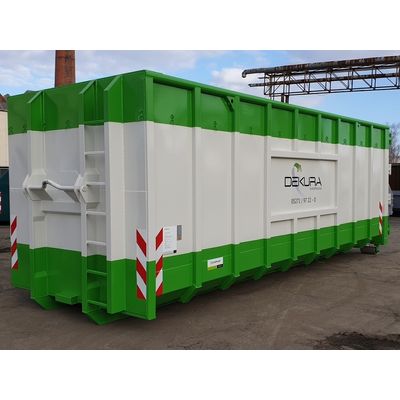

Elkoplast - Model Standard Version (ABR-DSD) -Classic Design With Side Vertical Reinforcements
Classic design with side vertical reinforcements, a universal solution for the transport of various types of materials. Variation of the spacing of the side/floor reinforcements according to the required load, robust upper hem, different types of hook and design of the rear door or fl ap according to the specific application.
Most popular related searches
roll-off container
containment tarpaulin
waste management
waste management container
hook lift system
hook lift
waste containment
waste container
- acc. to the German (DIN 30 722) norm,
- hook, cable, chain lifting system or a combination of thereof,
- EN S235 or S355 steel, thickness 2 - 6 mm,
- continuous welding (except for the bottom reinforcements where disconnected welding was used),
- top profile - tube 89 × 6 mm,
- rails and lifting made of IPN 180, rear frame of a rolled section UPN 180,
- vertical reinforcements of sides U 100 × 60 × 3 mm and bottom beams U 100 × 60 × 4 mm,
- spacing of 750 mm,
- the transition between sides and bottom 45, 90° or so-called round corner,
- the rear side of the container formed of double-wing, single-wing or flap door
- wheels and hinges provided with grease cups,
- central door locking operated from the side of the container,
- tarpaulin hooks,
- a ladder on containers with inner height min. 1 250 mm (fulfilling the safety norms).
- two-piece sliding roof
- tilting roof operated mechanically or hydraulically
- spooling roof with fastening straps or fixed roof.
