Aquacheck - Classic Probe with MODBUS, SDI-12 & RS-485 Interface Options
FromAquacheck USA

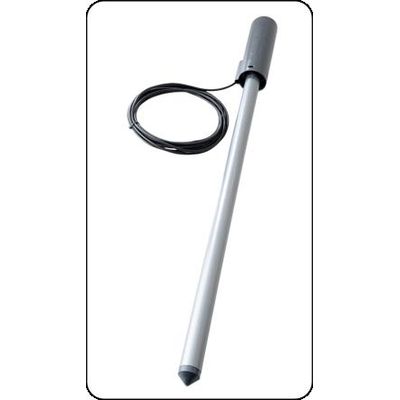

Application: annual crops, orchards and nurseries. The AquaCheck Classic probe is a capacitance-based soil moisture and soil temperature monitoring device offering up to 15 sensors per probe. The Classic probe requires an external logger or remote transmission unit and external power supply.
Most popular related searches
soil temperature monitoring system
soil temperature monitoring
temperature monitoring system
soil temperature sensor
temperature sensor
temperature monitoring
soil monitoring system
soil sensor
soil monitoring
moisture monitoring system
- A capacitance based continuous logging probe.
- Probe lengths from 200mm to 1600mm (refer to the link below for the various options available).
- Up to 15 soil moisture and soil temperature sensors depending on the probe configuration.
- Shaft diameter: 32mm.
- Compliancy: CE, FCC certified.
- Communication Interface options:
- SDI-12 (serial data interface, 1200bd)
- MODBUS, 2400bd
- Supplied with a 6m 3-core 0,5mm thick cable.
- Voltage input: 4-14V.
- Power requirement: 10uA (0,01mA) during idle; 20mA for 2 seconds during measurement.
- Sensor spacing: every 100mm or 200mm (refer to the link below for the various options available).
- Sensor resolution: Approximately 13 bits.
- Temperature sensor: 0 to 51 oC, steps of 0.2 Degrees.
