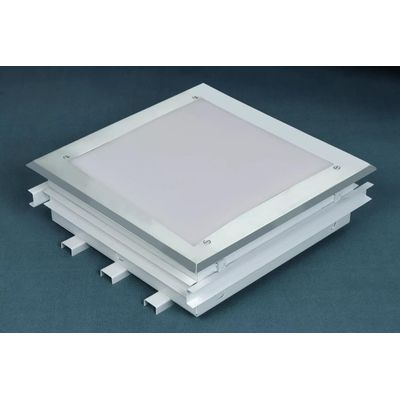

Jabla -Â Model Slab B Series -Clean Room Light Fixer
SLAB-B Series is a stand of slab cast bottom opening Cleanroom Light fixtures, with the unique design of the construction of it you can easily cast fixture with your slab/slab filling, which eliminates any open holes or gaps between slab and fixture which ensures it air & water leakages, the fixture comes with bottom side single piece weldless jointless single piece frame for high durability, high strength and long life it also comes with two color option ( white & Monochromatic yellow ) also, it comes with combine option like both the lights are in Single fixture for light sensitive areas.
Most popular related searches
cleanroom lighting
cleanroom
water leak
epoxy coating
gaskets
PCB
hole opener
powder processing
tank coating
- Housing: Body Constructed from CRCA sheet 0.5mm thickness
- Bottom Frame: Available in two options 1. Powder Coated 1mm 2. S.S.304 1mm
- Powder Coating: 7 Tank Chemical processed epoxy powder coating
- LED: Low Power high efficient SMD LEDs like Bridgelux(USA) Edition(Taiwan), Seoul(South Korea)
- Driver: High Efficient Multi-Stage CC Driver
- Cable: Virgin PVC Coated
- PCB: High Dielectric capacity Aluminum-based Metal core PCB for better Heat Dissipation
- Gasket: Non-Hygroscopic VHB Gasket
- Diffuser: HET Diffuser for better light intensity (High-Efficiency Translucence)
- Ancillaries: Loss Free S.S. screws for mounting the frame
