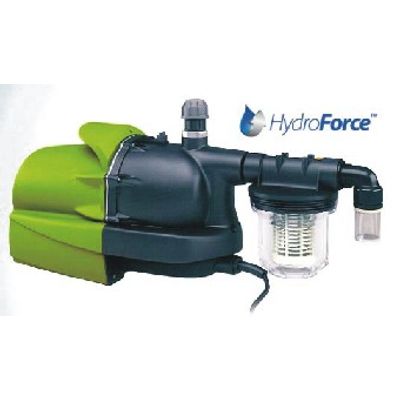

Rainwater-Harvesting - Model Hydroforce Series 3 -Clean Water Pump
HydroForce Rainwater Harvesting Pump Series 3 is a submersible pressure sensitive rainwater tank pump - electronically controlled, centrifugal roto-dynamic with no reciprocating parts. Built-in non-return valve and double dry-run protection. Manufactured in the UK. Powerful Pump & Essential Features. The pump features a self-controlling pressure switch, dry run protection and a non-return valve. It is suitable for total immersion in tank water or it can be externally connected to the tank above ground. The Series 3 will deliver up to 3.5 bar (household pressure is around 2.5-4.0 bar). If connected to a hose or tap, the pump will automatically start to pump water when the tap or hose is turned on. The pump delivers over 2500 litres per hour using a 1` connector and uses 800 watts at 220-240v AC delivered by a 10 metre cable.
The HydroForce™ Series 3 is an electronically-controlled, pressure-sensitive, submersible, centrifugal roto-dynamic pump with no reciprocating parts.
Pressure-sensitive (demand) pump switches on and runs when there is a demand for water.
Max head (nominal) 35 metres, pump pressure (nominal) at outlet 3.5 bar, max. suction 3 metres
Dry-run Protection: when no water is detected for 8 seconds, the pump is turned off by the printed circuit board (PCB) in order to protect the motor and pump from burning out. Automatic reset after a period of 30 minutes. If water is still not detected, subsequent reset periods are 1.5 hours, 3 hours, 7 hours, 12 hours, 24 hours then back to the beginning of the cycle. Additionally, a thermal switch, not connected to the PCB, turns the pump off if motor overheats. It resets when cool which make take several hours.
New: Alloy bulkhead, pressure release gap and twin chamber design prevents ingress of water to motor, electrical components and to bearing oil.
New: Double bearing seal prevents egress of bearing oil.
New: Alloy bulkhead dissipates motor heat to water in the second chamber.
New: Logic processors in PCB prevent other pump anomalies and permit factory programming of reset timings.
New: Inlet cartridge filter, inlet strainer and output pipe connector are factory-fitted and the seals tested to ensure proper running of the pump.
Guaranteed for 2 years.
Electricity consumption 800 watts at 220-240 Volts AC 50 Hz (requires 10 or 13 amp fuse and RCD mains socket). Connection cable 10m H07RN-F.
Inlet port to the non-removable filter 1 inch (25mm) female BSP. Output port 1 inch (25mm) female BSP provided with push-fit connector for 1 inch (25mm) MDPE pipe (1 ¼ inch (32mm) connector option by special order).
Dimensions L 565 W 185 H 260 mm, weight 13.1 kgs
High-quality image-based multi-lingual instruction manuals
