Darling - Model 4LM / S&M / SVT Series -Clear & Raw Water Pumps

SHARE

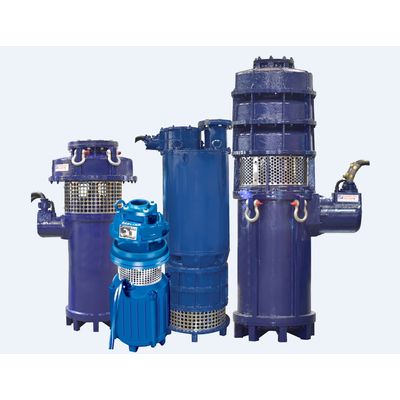

Range of Darling Open Well Submersible Clear Water Pumps consists Of S and M Series Pumps. We are pioneers in this range of pumps and had Indian patent for this product. Our pumps are not only ideal for various agricultural applications but are also very popular for many industrial applications as well. The uniqueness of these submersible clear water pumps is that they are very compact, can be installed in inclined position as well and can offer head up to 140 m in maximum 4 stages. Darling Pumps has one of the most established ranges of pumps for Raw Water pumping. These pumps are not only useful for pumping out River water, but can very well be modified to pump out Sea water as well. Darling SVT series pumps, with its unique user friendly design are not only very strong, sturdy & compact, but can prove to be very ideal replacement for regular Vertical Turbine Pumps.
Most popular related searches
raw water pump
raw water pumping
water pump
raw water
submersible water pump
vertical turbine pump
contaminated water
river water
turbine pump
openwell submersible pump

Rating : Up to 220 kW
Flow : Up to 1200 m3/ hr
Head : Up to 140 m
Induction Motor : Dry Type
Degree of Protection : IP68
Speed : 1450 rpm & 2900 rpm (Sync. speed)
Power Supply/Frequency* : 3-Phase, AC - 415V / 50Hz
Starting : DOL / Star Delta

* Option of Other Voltage & Frequency is also available.

  • Impeller – Highly efficient impeller ensuring more pumping in lesser no. of stages
  • Motor – Highly efficient dry motor with built -in protection against temperature rise.motor capable to withstand wide voltage fluctuations.
  • Shaft – Extra heavy duty SS Shaft to withstand tougher site conditions
  • Mechanical Seals -Pumps are fitted with Mechanical seal in independent chambers, not exposed to pumpage liquid.
  • Bearing– Heavy duty ball bearing used at top and bottom ends to balance adverse load.
  • Sand Guard Arrangemnet – Additional protection for mechanical seal by seal guard.
  • Cable Sealing – Special leak proof cable sealing arrangement,to avoid ingress of water through cable.no need to open motor for changing cable.
  • Basement Water Dewatering
  • Storm Water Dewatering
  • Pumping heavily contaminated water with Sand gravel and sludge at various construction sites.
  • Sea Water Pumping
  • Industrial Water Dewatering
  • Dam Sites & Deep Excavation
  • Micro Tunneling Projects
  • Underground Civil Projects
