Lamor - Clearwell Fabric Baffle System

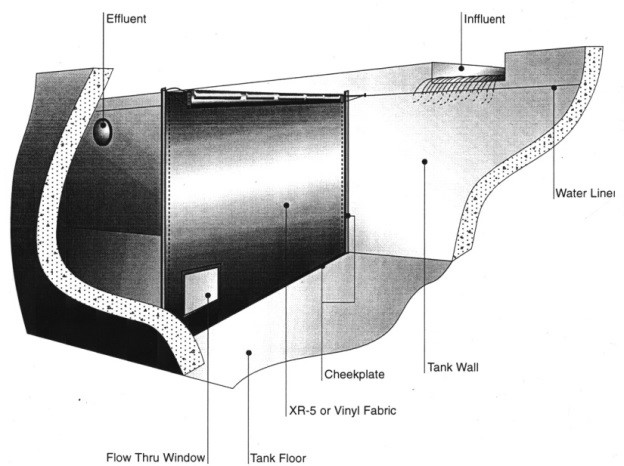

Lamor Clearwell Fabric Baffle Systems are engineered to enhance the performance of new or existing Clearwell disinfection tanks to meet or exceed various international safe drinking regulations. Our Flexible Clearwell baffles are built with NSF Standard 61 approved fabric certified for use in drinking water applications. Each corner of the fabric baffle is fastened to the Clearwell with stainless steel angles, flats, and mounting hardware.
The Lamor Clearwell Baffle is a cost-effective and flexible solution to increase retention time providing maximum disinfection during the process. Each Clearwell Baffle is engineered and designed based upon specific tank dimensions. Engineered drawings are provided to guide a simple installation process. Site supervision of the installation is available upon request. A 10-year pro-rated warranty is offered on all our Floating Wastewater and Clearwell Baffle Systems.
- Potable, waste and industrial water applications
- Durable construction
- Permanent installations
- Withstands all weather conditions
- Marine growth inhibitors, UV resistant
- Long service life
- Withstands winds, currents from aerators
- Low maintenance
- Length: 5-30 m / 16-100 ft
- Height: 1-10 m/ 3-30 ft
- Freeboard: 203 mm / 8 in
- Fabric weight: 1016 g/m² / 30 oz/yd²
- End Connector: Stainless steel type 304 or 316
- Ballast: SS 316 or PVC angles & flats
- Tension member(s): Synthetic paralay cable**
