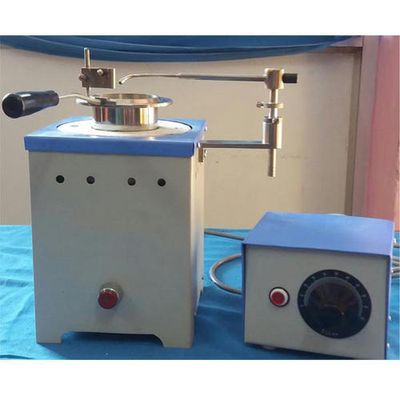

Cleveland Flash Point & Fire Point Apparatus
This apparatus is used for determination of flash point and fire point of petroleum products open cup flash above 80°C as per specification IP 36 and IS: 1448 (P: 69) 1969. The apparatus consists of a cup, heating plate to specific dimension thermometer clip and test flame attachment with swivel joint for passing over test liquid surface in the prescribed manner, Heating is controlled by means of energy regulator fitted to the apparatus. Suitable for operation on 220 Volts 50 cycles AC Circuits.
Most popular related searches
- Frequency: 50Hz
- Thermometer: -6~400degC
- Voltage: 220V
- Gross Weight: About 6Kg
- Accuracy: 2degC
Other Details:
- NIC 132 - Cleveland flash point & fire point Apparatus Electrical Heating with Energy Regulator Gas Test Jet
- NIC 133 - With OIL WICK Arrangement
- NIC 134 - - Same as above with - Gas Jet & Oil Wick Arrangement COMBINED Model
- NIC 135 - Cleveland Flash Fire Point App. with Electronic Digital Temp. Indicator and Temp. Regulator Combined
- NIC 136 - Cleveland Flash Fire Point App. with Voltage Varic (Copper Coil)
- NIC 136 A - Automatic Flash & Fire Point App. Membrence key pad to Selection of Disered Flash Point programme. NICid heating stage. Multi Functional Arm for Ignition device. Complete Set.
- NIC 132 a - Thermometer IP 28C (-5°C to 400°C)
- NIC 132 b - Polish Wooden case for NIC - 132, 133, 134 Model
- NIC 132 c - Rexine cover for Dust Protection to NIC-135-136 Model
- NIC 132 d - Spare Cup with Handle
- NIC 132 e -Spare Nichrome element
- NIC 132 f - L.P.G. Test flame container with Valve
Additional Information:
- Pay Mode Terms: T/T (Bank Transfer)
- Port of Dispatch: ROORKEE
- Delivery Time: 15 DAYS
