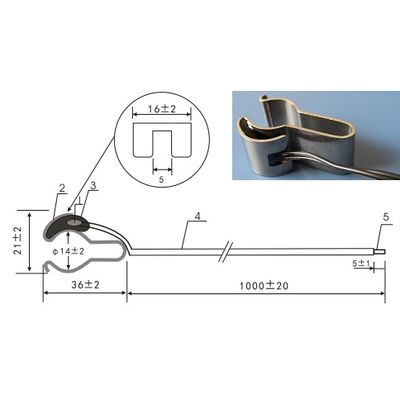

AMWEI - Model NTC 10K Ohm B3435K F14mm -Clip-on Pipe Temperature Probe Clamp Assembly
NTC thermistor R25: 10KΩ±1%，Beta value B(25/85):3435K. Stainless steel case, Φ14mm. Insulation Voltage 1200VAC, Operating temperature range: -30 to +105C, Temperature measurement accuracy from -30 to +105C shall be within +/- 1.5C. Direct clip application to pipe surface. Ideal for pipe clamp mount or rounded surface temperature measurement. Ideal for inlet or outlet refrigerant sensing, hot water tube, and other arc surface temperature measurement. Installation is fast and simple as the sensor assembly just snaps clamp into place. More details in https://amwei.com/clip-14mm-pipe-ntc-10k-ohm-beta-3435k-probe/.NTC thermistor R25: 10KΩ±1%，Beta value B(25/85):3435K.
Stainless steel case, Φ14mm.
Epoxy Resin, black color.
Wire Cable UL2651 26AWG 300V 105℃, black.
Stripped wire bared end, tinned.
Resistance at 25C R25: 10K ohm+/-1%,
Beta Value B(25/85): 3435K+/-1%
Dissipation Factor: 3 mw/℃ min.
Thermal Time Constant (in air): 90 seconds max.
Insulation resistance: 500VDC, 100 MΩ
Voltage withstanding: 1200VAC, 1mA, 2 seconds
Operating temperature range: -30 to +105C
Temperature measurement accuracy from -30 to +105C shall be within +/- 1.5C.
Direct clip application to pipe surface. Ideal for pipe clamp mount or rounded surface temperature measurement. Ideal for inlet or outlet refrigerant sensing, hot water tube, and other arc surface temperature measurement. Installation is fast and simple as the sensor assembly just snaps clamp into place.
