PureLine - Model CG Series -ClO2 Generator System
FromPureLine

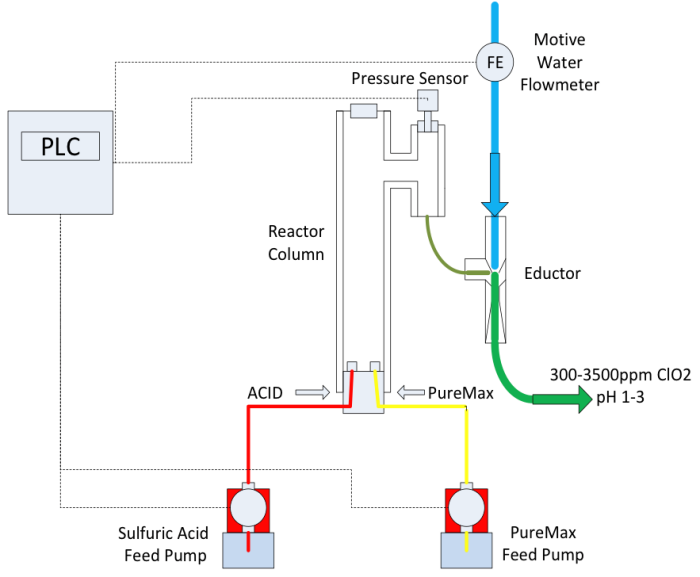

PureLine’s CG generators produce chlorine dioxide from sodium chlorite. These large-capacity units provide good return on investment by using PureMax precursor and sulfuric acid (78%, 93% or 98%). The PureLine CG series are robust generators that deliver excellent uptime and continuity of service in a broad range of severe environments, including: Oilfields, Industrial, Commercial Marine, and Municipal.
Most popular related searches
chlorine dioxide generation
chlorine dioxide generation system
chlorine dioxide system
chlorine gas
water flow control
manganese removal
chlorine dioxide
odor control
water control
municipal flow
Pure Advantages
- 95% efficient
- No chlorine gas
- Low-cost production
- Safe
- Easy to operate
- Excellent uptime
- Thrives in harsh environment
Pure Chemistry
PureLine’s patented ClO2 technology offers many benefits:
- Does not form THMs
- EPA/RMP & OSHA PSM compliance
- Meets crypto and DBP requirements
- Efficacy over broad pH range
- Iron & manganese reduction
- Taste & odor control
- Removes color
- TOC reduction
- Low capital & operating costs
Available Capacities
- Up to 5,000 lbs/day
Precusors
- PureMax
Generator Specifications
- Capacity: Up to 5,000 lbs
- Chemical Usage: PureMax 4.2 lbs/lb of ClO2
- Electrical Power: 220VAC, 1PH, 30A service
- Water Requirement: 150 psi
- ClO2 Injection: Up to 16 independently controlled pumps
Process Interface
- PLC & OIT: Allen Bradley PLC and color touch screen
- Remote Start Stop: Via external contact for the distribution pump
- Flow Pace / PID Mode: Distribution pump output proportional to an external 4-20mA signal
- Outputs: Alarm and running status via Form-C dry contact
- Residual Mode: Optional residual control
Safety Interlocks
- Airlock alarms
- Air shutdown (optional)
- PLC controlled calibration
- Water flow confirmation control
- Vacuum sensor to confirm mixture
- Run Permissive Interlock
Dimensions
- Overall: 64″W X 77″H X 30″D
- Weight: 429 lbs
Process Connections
- PureMax Inlet: 1″ NPT, Sch. 80 PVC
- Sulfuric Acid: 1:” NPT, Sch. 80 PVC
- Distribution Pump Outlet: 1″ and up, PVC
- PureMax Vent: 1/2″ Sch. PVC
