Speck Pumpen Walter Speck GmbH & Co. KG
Products
Speck - Model MU...-MK-PM - Close ...

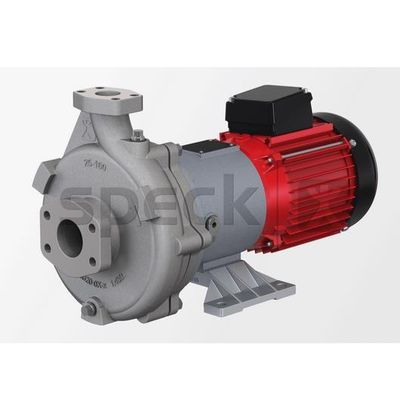

Speck - Model MU...-MK-PM -Close Coupled Centrifugal Bracket Pump

FromSpeck Pumpen Walter Speck GmbH & Co. KG

SHARE

MU...-MK-PM – Centrifugal pump with magnetic coupling and speed-controlled synchronous motor.

Most popular related searches

centrifugal pumping

centrifugal pump

close coupled pump

magnetic-coupled pump

magnetic coupled pump

close coupled centrifugal pump

digital temperature controller

Centrifugal pump
Bracket pump
Magnetic coupling
Hermetically sealed
Operation with a frequency converter
Motor efficiency level better than IE4

Temperature control
- Hot-water tempering devices
- Oil tempering devices
- Tool tempering for plastic injection moulding
Plastics processing
- Tool tempering for injection moulding

Product type: Centrifugal pump
Shaft sealing/coupling: None/magnetic coupling
Pump design: Bracket pump
Typical media: Water max. +160 °C
Oil min. -100 °C, max. +300 °C
Self-priming: No
Variable speed: Yes
Total head: 4–98 m
Flow rate: 2.0–25.0 m 3/h
Nominal pressure: PN 16
Motor current type: 3~
Type of motor: Synchronous motor
Nominal motor power: 1.5 kW – 5.3 kW
Nominal motor speed: 1000 – 4000 rpm
Suction-side connection design: Threaded SAE
Suction-side connection size: G 1 ½”, SAE 1 ½”
Pressure-side connection design: ThreadedSAE
Pressure-side connection size: G 1”, SAE 1”
Material designs: Stainless steel
Spheroidal graphite cast iron
Explosion protection: None
