Speck Pumpen Walter Speck GmbH & Co. KG

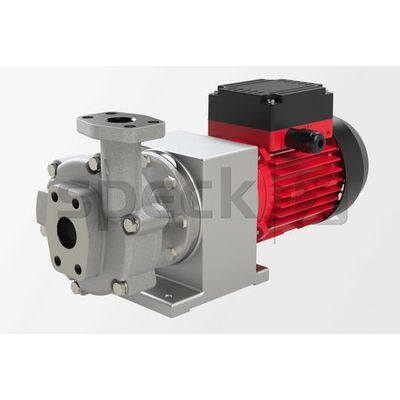

Speck - Model MY-4-MK-PM -Close Coupled Centrifugal Bracket Pump
MY-4-MK-PM – Centrifugal pump with magnetic coupling and speed-controlled synchronous motor.
Most popular related searches
centrifugal pumping
centrifugal pump
close coupled pump
coupled pump
magnetic-coupled pump
magnetic coupled pump
centrifuge
close coupled centrifugal pump
magnetic pump
industrial cooling
- Centrifugal pump
- Bracket pump
- Magnetic coupling
- Hermetically sealed
- Operation with a frequency converter
- Motor efficiency level better than IE4
- Temperature control
- Laboratory tempering devices
- Hot-water tempering devices
- Oil tempering devices
- Industrial cooling
- Chillers/cooling machines
- Cooling appliances
- Industrial processes up to -100°C
- Product type: Centrifugal pump
- Shaft sealing/coupling: None/magnetic coupling
- Pump design: Bracket pump
- Typical media: Water max. +160 °C, on request max. +200 °C
- Oil max. +350 °C
- Self-priming: No
- Variable speed: Yes
- Total head: 3–37 m
- Flow rate: 5.0–128.0 l/min
- Nominal pressure: PN 10
- Motor current type: 3~
- Type of motor: Synchronous motor
- Nominal motor power: 0.5 kW
- Nominal motor speed: 3000–6000 rpm
- Suction-side connection design: Thread: G, NPT, Rc/PT SAE
- Suction-side connection size: G ¾”, SAE 1 ¾”
- Pressure-side connection design: Thread: G, NPT, Rc/PT SAE
- Pressure-side connection size: G ¾”, SAE frac34;”
- Material designs: Stainless steel
- Explosion protection: None
