Linn - Model NM, NMD -Close Coupled Centrifugal Pumps with Threaded Ports
FromLinn-Pumpen GmbH

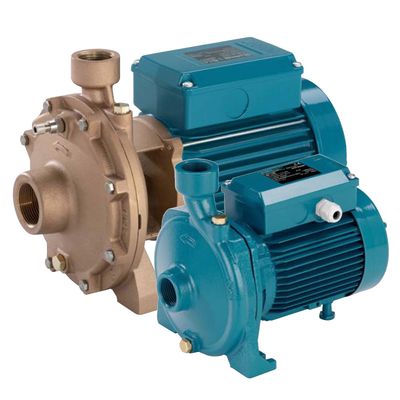

Close-coupled, centrifugal pumps; electric motor with extended shaft directly connected to the pump. NM: single-impeller NMD: with two back-to-back impellers (with axial thrust balancing). Connections: threaded ports ISO 228/1 (BS 2779). NM, NMD: version with pump casing and lanter bracket in cast iron. B-NM, B-NMD: version with pump casing and lanter bracket in bronze. (the pumps are supplied fully painted).
Most popular related searches
close coupled centrifugal pump
centrifugal pumping
centrifugal pump
close coupled pump
coupled pump
centrifuge
air conditioning
fire fighting
water supply
centrifugal electric pump
Applications
- For clean liquids without abrasives, which are non-aggressive
- for the pump materials ( solids content up to 0.2%).
- For water supply.
- For heating, air-conditioning, cooling and circulation plants.
- For civil and industrial applications.
- For fire fighting applications. For irrigation.
Operating conditions
- Liquid temperature from -10 °C to +90 °C.
- Ambient temperature up to 40° C.
- Total suction lift up to 7 m.
- Maximum permissible working pressure up to 10 bar
- (16 bar for pumps NMD 25/190; NMD 32/210; NMD 40/180).
- Continuous duty.
Motor
- 2-pole induction motor, 50 Hz (n = 2900 rpm).
- NM, NMD: three-phase 230/400 V ± 10% up to 3 kW; 400/690 V ± 10% from 4 to 9,2 kW;
- NMM, NMDM: single-phase 230 V ± 10%, with thermal protector. Insulation class F. Protection IP 54.
- Classification scheme IE2 for three-phase motors from 0,75 kW.
- Constructed in accordance with EN 60034-1; EN 60034-30. EN 60335-1, EN 60335-2-41.
Special features on request
- Other voltages. Frequency 60 Hz (as per 60 Hz data sheet).
- Protection IP 55. Special mechanical seal
- Higher or lower liquid or ambient temperatures.
- Motor suitable operation with frequency converter.
